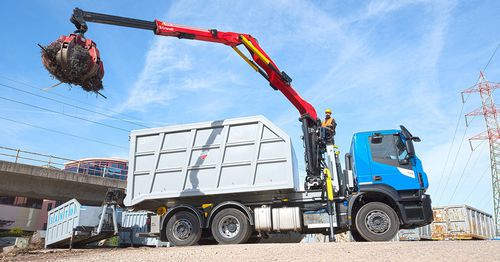

Truck-mounted crane TZ12

telescopicarticulatedfor the recycling industry

The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key properties of performance, high productivity and sustainability. With Cranab's Z-crane you will achieve high productivity from the outset. The crane extends quickly and enables efficient production using extensively tested hydraulics and leading operating properties. Thanks to its compact design and the Z-crane's unique parking position the operator is able to take a maximum load every time. Available versions: Telescopic version - 1 Standard reach - 8,3 m Lifting capacity - 108,0 kNm Hydraulic extension - 1,97 m Angle rotation - 425° Rotation torque - 29,3 kNm Working pressure - 26 Mpa Pump capacity - 120 - 160 l/min Crane weight - 2425 kg Telescopic version - 2 Standard reach - 9,3 m Lifting capacity - 102,8 kNm Hydraulic extension - 3,1 m Angle rotation - 425° Rotation torque - 29,3 kNm Working pressure - 26 Mpa Pump capacity - 120 - 160 l/min Crane weight - 2475 kg Telescopic version - 2 Standard reach - 10,5 m Lifting capacity - 99,7 kNm Hydraulic extension - 3,9 m Angle rotation - 425° Rotation torque - 29,3 kNm Working pressure - 26 Mpa Pump capacity - 120 - 160 l/min Crane weight - 2515 kg Telescopic version - 2 Standard reach - 7,7 m Lifting capacity - 111,0 kNm Hydraulic extension - 2,53 m Angle rotation - 425° Rotation torque - 29,3 kNm Working pressure - 26 Mpa Pump capacity - 120 - 160 l/min Crane weight - 2200 kg
