Automotive parts washer SmartWasher® SW-23 110v

for workshopsbioremediationmobile

Product Status
Discontinued product number may still be available for a limited time through your local supplier or retailer.

Overview

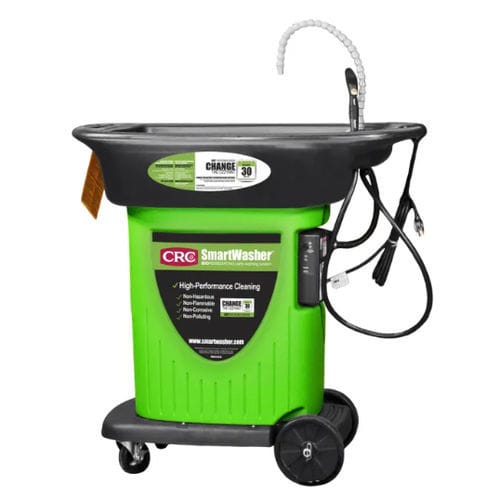

The SmartWasher SW-23 is a mobile heated parts and brake washer designed for professional cleaning of industrial, automotive and marine components. Constructed in heavy-duty HDPE, the unit supports loads up to 400 lb and ships ready for quick installation. Mobility is enabled via an included dolly with durable wheels and locking casters. The washer features an adjustable thermostat with two temperature settings, a flow-through brush and a flow control timer to scrub and rinse parts during cleaning.

Kit contents (example configuration)

• One SmartWasher SW-23 mobile parts and brake washer
• Three 5-gallon jugs of OzzyJuice® SW-4 Heavy Duty Degreasing Solution (where shipped as a kit)
• One FL-4 OzzyMat® multi-layer fluid activation mat (where shipped as a kit)

Variations (summary)
Part # | Item # | Container | Units Per Case | Status
1 Unit: Part# 1004858 | Item# 14161 | 1 Unit | 1 | Active
SW-323: Part# 1005019 | Item# 14744 | 1 Kit | 1 | Active
SW-423: Part# 1005015 | Item# 14740 | 1 Kit | 1 | Active
SW-723: Part# 1005018 | Item# 14743 | 1 Kit | 1 | Active
SW-823: Part# 1005022 | Item# 14748 | 1 Kit | 1 | Active
SW-X123: Part# 1751310 | Item# 1751310 | 1 Kit | 1 | Active

Available Documents (product literature)
Machine Manual - EN (SmartWasher Manual All Machines) PDF available
Machine Manual - ES (SmartWasher Manual All Machines) PDF available
Machine Manual - FR (SmartWasher Manual All Machines) PDF available
Machine Diagram (SW-23) PDF available
Troubleshooting Guide - EN PDF available
Troubleshooting Guide - ES PDF available
Troubleshooting Guide - FR PDF available
Replacement Parts (SW-23) PDF available

Bioremediation & Cleaning
The system uses a non-toxic, non-flammable aqueous cleaner OzzyJuice® SW-4. Dirty solution drains back into the tank and passes through an OzzyMat® FL-4 multi-layer activation mat where microbes degrade contaminants to restore fluid for reuse. Replace the OzzyMat® approximately every 30 days and refill fluid as required.

Use Cases

• Cleaning engine, machinery, automotive and marine parts
• Brake parts cleaning with dedicated flow-through brush and rinse during scrubbing
• Service in auto repair shops, metal fabrication shops and industrial maintenance departments

Technical specifications

• Model: SW-23
• Generic description: Parts washer
• Product lifecycle status: ACTIVE
• Load capacity: up to 400 lb
• Unit dimensions (1 Unit): 41.5H x 42.5W x 27D in
• Unit dimensions (most kit variants): 41.5H x 40W x 48D in
• Unit package: 1 Unit (or 1 Kit for kit variants)
• Units per case: 1
• Cases per pallet (1 Unit): 2
• Working temperature: 40 or 46 °C (105 or 115 °F)
• DOT proper shipping name: Not Regulated
• UPC (1 Unit): 649123000834
• Removal (how to): Remove with water (for kit liquid variants)
• Plastic safe: Yes (for kit liquid variants where indicated)
• Appearance (1 Unit packaging): Green and Black - HDPE
