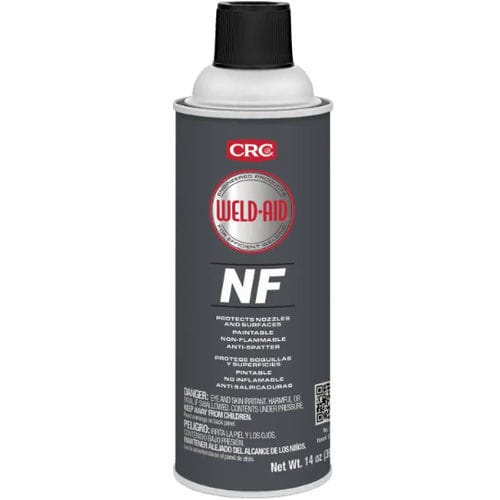

Welding anti-spatter product Weld-Aid Non-Flammable

Features and Benefits

• Non-flammable formula ideal for high-temperature and open-flame environments
• Aerosol application for fast, uniform coverage
• Silicone-free to reduce contamination risk and allow subsequent coatings
• Paintable surface for easy application of protective or finishing coatings
• Leaves a clear, non-staining protective film that prevents spatter adhesion

Applications

• Resistance welding tips
• MIG and TIG contact tips and nozzles
• Weldments and fabricated assemblies
• Electrode holders and tools
• Contact tips and liners
• Metal molds and fixtures
• Bench-top splash guards and workholding

Product Description
The Weld-Aid anti-spatter aerosol (Part 1755904, Item 007100) forms a protective oil film on tools, nozzles, workpieces and equipment to prevent weld spatter from adhering. Its non-flammable, silicone-free formulation is suited to production environments with elevated temperatures or open flames. The product is easy to apply via aerosol and simplifies post-process cleaning and maintenance.

Resources
14 wt oz
Part #: 1755904
Item #: 007100
Case #: 1755903
Container: 16 Ounce Aerosol
Units Per Case: 6
Status: Active
Available documents: Product Data Sheet, Safety Data Sheet (ENG), Safety Data Sheet (ESP), Sales Sheet

Technical specifications

• Evaporation Rate: Fast
• Film Type: Oil
• Flammability Class - CPSC: Not a Consumer Product
• Flash point (C): None
• Flash point (F): None
• Net Fill: 14 Wt Oz
• Plastic Safe: Safe on Most Plastics (Test small area)
• Appearance: Clear Colorless Liquid
• Case #: 1755903
• DOT Proper Shipping Name: AEROSOLS, FLAMMABLE LIMITED QUANTITY
• Generic Description: Anti Spatter Liquid
• I 2 of 5 Code: 30731592709965
• Product Lifecycle Status: ACTIVE
• Item Number: 007100
• Propellant: CO2
• Removal (How To): Clean with a CRC Cleaner/Degreaser
• Unit Dimensions: 7.75H x 2.63W x 2.63D in
• Unit Package Description: 16 Ounce Aerosol
• Units per Case: 6
• UPC Code: 731592709964
• VOC % (Consumer Product def): 43.7
