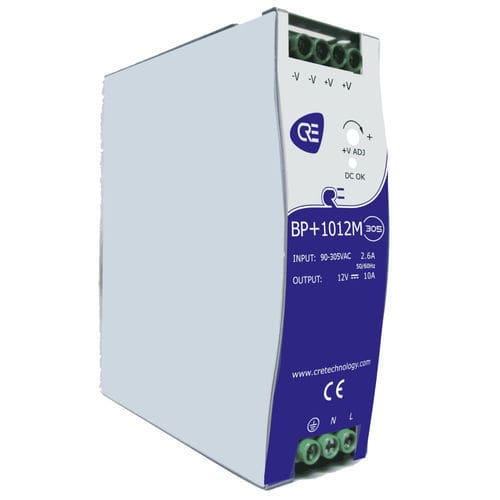

DIN rail-mounted battery charger BP+ 1012M-305
lead-acidautomaticswitching

DIN rail-mounted battery charger
DIN rail-mounted battery charger
Add to favorites
Compare this product


Characteristics

Configuration
DIN rail-mounted
Battery type
lead-acid
Other characteristics
automatic, switching, with integrated diode
Voltage

Max.: 24 V

Min.: 12 V

Amperage

Max.: 10 A

Min.: 3 A

Description

Our new battery chargers range offers a range of input voltages in monophase, a range of output current from 3A to 10A and voltage output from 12VDC to 24VDC. Features: Battery Charger (optimized size) 12VDC - 5A single phase, Voltage input: 90 to 305VAC Rail DIN mounting, Switching frequency architecture. Protections: Short circuit, Overload, Overvoltage and over temperature, Diode integrated, 3 years warranty.
