Solar inverter control panel PV COMPACT CORE

compactmanualautomatic

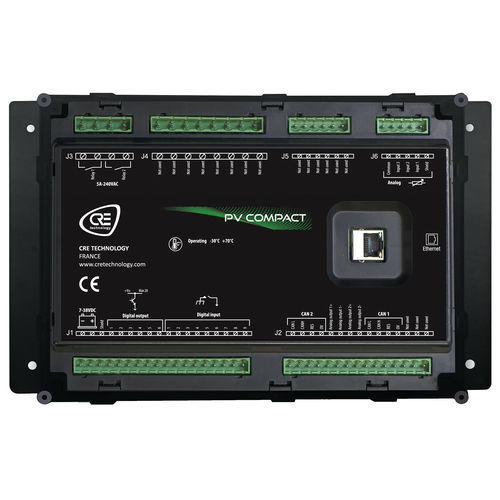

All-in-one photovoltaics inverters control PV COMPACT CORE The PV COMPACT CORE is one controller of a complete range for Energy sources and power plant management: Generators, main, Photovoltaic, Batteries storage, Tie breakers. It controls photovoltaic inverters in grid-connected applications and/or one/several generators and/or batteries storage. The PV COMPACT CORE offers flexibility and time saving thanks to its simple wiring and easy programming. Hardware & Display The PV COMPACT is available in both switchboard panel mounted version with display, or core base mounted version and compatible with i4Gen touchscreen color display range. Software The PV COMPACT CORE is configurable from i4Gen HMI, or through the free i4Gen Suite PC software. Control and Management ModBus TCP Sunspec « Plug & Play » communication with all the inverters on the market with the ability to create and configure additional custom read and write frames. Control of the max power KWc solar such a way as to keep a minimal power on the generator(s), while maintaining a fixed frequency (isochronous mode). Control of the reactive power KVAR solar: either by imposing a configurable fixed cosphi, or by sharing KVARs between solar energy and other sources, while maintaining a fixed tension (iso-tension mode). Manual and automatic control of the closing and opening of the PV generation relay. Immediate stop of the solar production in case of power return on the generator(s) (so as to keep the installation undervoltage).
