White LED array L2standardstandardfor lighting
Add to favorites
Compare this product
Characteristics
- Spectrum
- white
- Configuration
- standard
- Mounting
- standard
- Product applications
- for lighting, for street lighting, airport lighting
- Electrical power
Max.: 66 W
(0.089735 hp)Min.: 18 W
(0.024473 hp)
Description
Product Details

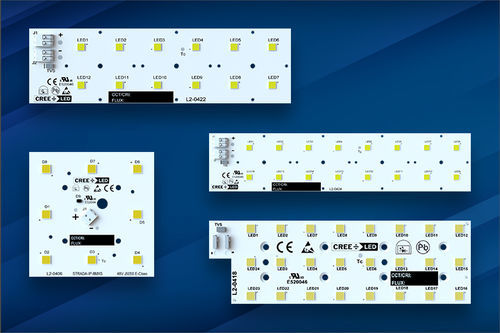

Cree LED’s Standard L2 Array modules are engineered for outdoor lighting applications such as streetlighting. Featuring J Series® 5050 White LEDs, these array PCBAs deliver consistent performance, flexible design options and multiple price-performance configurations.
Array Products
Benefits
Specifications Table
Product Type | Product | LED Count | Populated LED | Voltage Class | CCT Min (K) | CCT Max (K) | CRI Options | Typical Power (W) | Max. Power (W) | x (mm) | y (mm)
L2 Array | LS8 | 8 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 48 | 2700 | 5000 | 70 | 18-19 | 48 | 70 | 70
L2 Array | LS12 | 12 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 36 | 2700 | 5000 | 70 | 36-38 | 72 | 174 | 50
L2 Array | LS12P | 12 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 36 | 2700 | 5000 | 70 | 36-38 | 72 | 147 | 45
L2 Array | LS16 | 16 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 48 | 2700 | 5000 | 70 | 48-50 | 96 | 225 | 50
L2 Array | LS24 | 24 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 48 | 2700 | 5000 | 70 | 63-66 | 144 | 148 | 47
Technical Specifications / Features
Cree LED’s Standard L2 Array modules are engineered for outdoor lighting applications such as streetlighting. Featuring J Series® 5050 White LEDs, these array PCBAs deliver consistent performance, flexible design options and multiple price-performance configurations.
- Five MCPCB options designed for easy integration
- 3 LED choices for different price-performance options
- TVS diode for protection against high-voltage transients
- Available in 5000K, 4000K, 3000K & 2700K CCTs at 70 CRI
Array Products
- LS8: 70 x 70 mm MCPCB with 8 J Series 5050 LEDs
- LS12: 174 x 50 mm MCPCB with 12 J Series 5050 LEDs
- LS12P: 147 x 45 mm MCPCB with 12 J Series 5050 LEDs
- LS16: 225 x 80 mm MCPCB with 16 J Series 5050 LEDs
- LS24: 148 x 47 mm MCPCB with 24 J Series 5050 LEDs
Benefits
- Streamlined integration for OEM fixture designs
- Cost-effective options to meet a range of performance needs
- High uniformity and reliable thermal performance
Specifications Table
Product Type | Product | LED Count | Populated LED | Voltage Class | CCT Min (K) | CCT Max (K) | CRI Options | Typical Power (W) | Max. Power (W) | x (mm) | y (mm)
L2 Array | LS8 | 8 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 48 | 2700 | 5000 | 70 | 18-19 | 48 | 70 | 70
L2 Array | LS12 | 12 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 36 | 2700 | 5000 | 70 | 36-38 | 72 | 174 | 50
L2 Array | LS12P | 12 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 36 | 2700 | 5000 | 70 | 36-38 | 72 | 147 | 45
L2 Array | LS16 | 16 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 48 | 2700 | 5000 | 70 | 48-50 | 96 | 225 | 50
L2 Array | LS24 | 24 | 5050C 6V E Class / 5050B 6V H Class / 5050B 6V K Class | 48 | 2700 | 5000 | 70 | 63-66 | 144 | 148 | 47
Technical Specifications / Features
- Outdoor lighting applications (streetlighting)
- J Series® 5050 White LEDs
- Multiple MCPCB sizes and LED counts
- TVS diode for transient protection
- Available CCTs: 5000K, 4000K, 3000K, 2700K
- 70 CRI
- Voltage classes: 36V, 48V
- Typical and max power ratings per model
