White LED Standard L2 Linear

stripstandardhigh-flux

Product Details

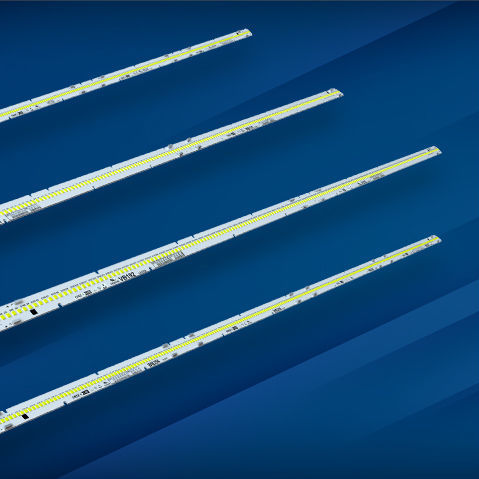

Cree LED’s Standard L2 Linear modules are engineered for indoor lighting applications such as troffers, panel lights and cove lighting. Featuring J Series® 2835 White LEDs, these linear PCBAs deliver consistent performance, flexible design options and multiple price-performance configurations.

• Two linear FR4 PCB options designed for easy integration
• Available in 5000K, 4000K, 3500K and 3000K CCTs
• 80 CRI and 90 CRI performance options
• Choose from five LED configurations to match efficiency and cost targets

VB256

• Dimensions: 1120 mm (44″) × 20 mm FR4
• LED Counts: 256, 128 or 64
• Modular Design: Cuttable into two 560 mm (22″) sections or four 280 mm (11″) sections

VB192

• Dimensions: 1120 mm (44″) × 20 mm FR4
• LED Counts: 192 or 96
• Modular Design: Cuttable into two 560 mm (22″) sections, with poke-in connectors on each section end for fast assembly

Benefits

• Streamlined integration for OEM fixture designs
• Cost-effective options to meet a range of performance needs
• High uniformity and reliable thermal performance
• Flexible cuttable formats to reduce inventory complexity

Specifications Table
Product Type | Product | Data Sheet | Product Status | LED Count | Populated LED | Voltage Class | CCT Min (K) | CCT Max (K) | CRI Options | Typical Power (W) | Max. Power (W) | x (mm) | y (mm)
L2 Linear | VB192 | [Data Sheet] | New | 192 | 2835 3V N Class | 48 | 3000 | 5000 | 80, 90 | 52 | 132 | 1120 | 20
L2 Linear | VB192 | [Data Sheet] | New | 96 | 2835 3V N Class | 48 | 3000 | 5000 | 80, 90 | 26 | 66 | 1120 | 20
L2 Linear | VB192 | [Data Sheet] | New | 192 | 2835 3V J Class | 48 | 3000 | 5000 | 80, 90 | 52 | 132 | 1120 | 20
L2 Linear | VB192 | [Data Sheet] | New | 96 | 2835 3V J Class | 48 | 3000 | 5000 | 80, 90 | 26 | 66 | 1120 | 20
L2 Linear | VB192 | [Data Sheet] | New | 192 | 2835 3V G Class Pro9 | 48 | 3000 | 5000 | 90 | 52 | 132 | 1120 | 20
L2 Linear | VB192 | [Data Sheet] | New | 96 | 2835 3V G Class Pro9 | 48 | 3000 | 5000 | 90 | 26 | 66 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 256 | 2835 3V N Class | 48 | 3000 | 5000 | 80, 90 | 88 | 176 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 128 | 2835 3V N Class | 48 | 3000 | 5000 | 80, 90 | 44 | 88 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 64 | 2835 3V N Class | 48 | 3000 | 5000 | 80, 90 | 22 | 44 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 256 | 2835 3V J Class | 48 | 3000 | 5000 | 80, 90 | 88 | 176 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 128 | 2835 3V J Class | 48 | 3000 | 5000 | 80, 90 | 44 | 88 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 64 | 2835 3V J Class | 48 | 3000 | 5000 | 80, 90 | 22 | 44 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 256 | 2835 3V G Class Pro9 | 48 | 3000 | 5000 | 90 | 88 | 176 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 128 | 2835 3V G Class Pro9 | 48 | 3000 | 5000 | 90 | 44 | 88 | 1120 | 20
L2 Linear | VB256 | [Data Sheet] | New | 64 | 2835 3V G Class Pro9 | 48 | 3000 | 5000 | 90 | 22 | 44 | 1120 | 20

Technical Specifications / Features

• Product Type: L2 Linear
• PCB Material: FR4
• Dimensions: 1120 mm x 20 mm
• LED Counts: 256, 192, 128, 96, 64
• Populated LED: 2835 3V N Class, 2835 3V J Class, 2835 3V G Class Pro9
• Voltage Class: 48
• CCT Range: 3000K to 5000K
• CRI Options: 80, 90
• Typical Power: 22W to 88W
• Max Power: 44W to 176W
• Modular Design: Cuttable sections for flexible integration
• Application: Indoor lighting (troffers, panel lights, cove lighting)
