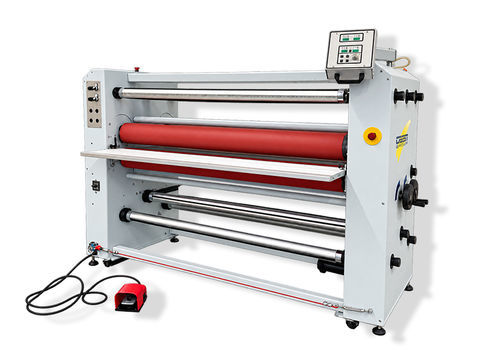

Hot laminating machine MLC-1600

large nipwith winderfor panels

Product overview

• Modular laminator CREST MLC-1600 in 4-roll configuration
• Brand: CREST
• Condition: used

Specifications

• Max. working width: 1575 mm (62 in); roller width: 1675 mm
• 4 pressure rollers, 2 front rollers heated (max. 135 °C)
• Line pressure up to 2.5 N/mm with digital read-out
• Roller speed up to 8 m/min, reversible direction
• Roller nip opening up to 35 mm
• Substrate thickness up to 30 mm
• 3 unwind/wind-up positions with 3+3 auto-grip shafts
• Unwind/wind-up diameter up to 200 mm; core 75 mm (3 in)
• Swinging feed-in table with removable image guide; swinging feed-out table
• Control panel with digital display on swing arm; operation from both sides
• Safety: emergency stop buttons, 2 emergency cable switches, foot pedal with cover
• Mobility: castors
• Dimensions (W x D x H): 2320 x 1210 x 1610 mm; net weight: 1090 kg
• Power (heated): 16–19 A, 3 phase

Applications
The CREST MLC-1600 is intended for adhesive coating, panel mounting, laminating and encapsulation of images up to 1575 mm wide. The 4-roll configuration provides an additional roller set for pulling and finishing the laminate, suitable for roll-to-roll processing and panel work.

Features

• Two heated front rollers for temperature-controlled laminating (max. 135 °C)
• Digital line pressure read-out (up to 2.5 N/mm)
• Roller speed up to 8 m/min with reversible direction
• Large nip opening (up to 35 mm) to process substrates up to 30 mm thick
• 3+3 auto-grip shafts for unwind and wind-up
• Swing-arm control panel for bilateral operation
• Safety devices: emergency stops, emergency cable switches, covered foot pedal
• Castors for relocation

Options and upgrades
The MLC is modular; typical options include slitting, ionisation at the feed-in table and wrinkle control (availability depends on configuration).

Price
Price: on request. Excluding transport and installation. Changes to equipment or specifications may affect the price.

Technical specifications

• Model: MLC-1600
• Configuration: 4-roll laminator
• Max. working width: 1575 mm
• Roller width: 1675 mm
• Heated rollers: 2 front rollers, max. 135 °C
• Line pressure: up to 2.5 N/mm (digital read-out)
• Roller speed: up to 8 m/min, reversible
• Roller nip opening: up to 35 mm
• Max. substrate thickness: 30 mm
• Unwind/wind-up positions: 3 (3+3 auto-grip shafts)
• Unwind/wind-up diameter: up to 200 mm; core 75 mm (3 in)
• Tables: swinging feed-in table with removable image guide; swinging feed-out table
• Control: digital display on swing arm; bilateral operation
• Safety: emergency stop buttons; 2 emergency cable switches
• Foot pedal: included (with cover)
• Mobility: castors
• Dimensions (W x D x H): 2320 x 1210 x 1610 mm
• Net weight: 1090 kg
• Power supply (heated): 16–19 A, 3 phase
