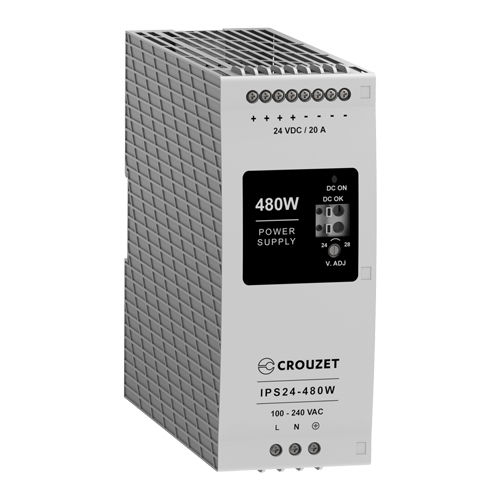

DIN rail power supply 89452 series

DC/DCsingle-phaseCE

Crouzet is presenting the new generation of 12V and 24V power supplies. This new family of product has been designed to fit into a very wide range of industrial applications, and into the panels of the most common building applications. This range is perfectly suited to be used with all Crouzet 12 VDC or 24 VDC products. Ideally convenient for their use in distribution panels thanks to its DIN rail mounting. Smaller Size Space in the panel is more important every day to fit a higher quantity of products to have complex applications, and that's why the next generation of Crouzet's compact family of power supplies are 1 module thinner (the equivalent of 17.5mm or 0.69 inches) in every version. With 11 products that goes from 10 to 480W and their wide voltage input ranges (from 84 to 264 VAC), they allow the supply of single-phase mains electric power to DC power lines requiring 12V DC or 24V DC in a very reliable way. Better Performance These DIN Rail mount power supplies have an increased Energy efficiency up to 90% at 240VAC and Low No-Load Power Consumption. In addition, thanks to the new terminal position, as well as double insulation and a Class II safety input, simplifies wiring of the product and earthing is no longer necessary. In the same way, the NEC Class 2 standard, in accordance with UL1310, allows operation in cases where output currents must be limited under fault conditions.
