Very narrow aisle forklift TSP 1000
electricride-onpallet

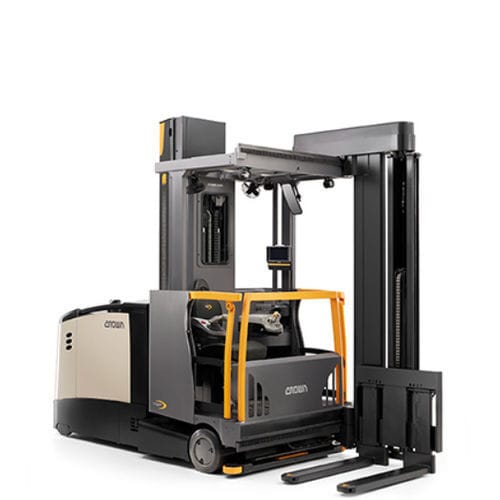

Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 2
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 3
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 4
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 5
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 6
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 7
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 8
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 9
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 10
Very narrow aisle forklift - TSP 1000 - CROWN - electric / ride-on / pallet - image - 11
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for warehouse, for very narrow aisles, pallet
Other characteristics
multi-directional, medium-load, high-reach, platform
Carrying capacity

Max.: 1,500 kg
(3,306.9 lb)

Min.: 1,000 kg
(2,204.6 lb)

Lifting height

13,485 mm
(530.91 in)

Overall width

Max.: 1,839 mm
(72.4 in)

Min.: 1,220 mm
(48 in)

Overall length

Max.: 4,295 mm
(169.1 in)

Min.: 3,600 mm
(141.7 in)

Load center distance

600 mm
(23.6 in)

Weight without load

Max.: 8,395 kg
(18,507.8 lb)

Min.: 6,580 kg
(14,506.4 lb)

Track width front

Max.: 1,625 mm
(64 in)

Min.: 1,015 mm
(40 in)

Free lift

Max.: 5,305 mm
(208.9 in)

Min.: 1,825 mm
(71.9 in)

Overall height with mast raised

Max.: 14,555 mm
(573 in)

Min.: 5,970 mm
(235 in)

Seat height

Max.: 2,415 mm
(95.1 in)

Min.: 460 mm
(18.1 in)

Ground clearance at center of wheelbase with load

46 mm
(1.8 in)

Turning circle radius

Max.: 2,735 mm
(107.7 in)

Min.: 2,250 mm
(88.6 in)

Travel speed

Max.: 12 km/h
(7.5 mph)

Min.: 9.6 km/h
(6 mph)

Lifting speed

Max.: 0.48 m/s
(1.575 ft/s)

Min.: 0.36 m/s
(1.181 ft/s)

Lowering speed

0.33 m/s, 0.41 m/s, 0.45 m/s
(1.083 ft/s, 1.345 ft/s, 1.476 ft/s)

Description

The TSP 1000 Series has a maximum lift height of 13485 mm and offers versatility in a VNA truck to handle a wide range of warehousing challenges, including full pallet handling and case picking. Crown builds each VNA truck to fit the specific requirements of your application. With advanced technology, exceptional travel, lift and lower speeds, load capacities and lift heights - supported by an industry-leading, heavy-duty mast - the new TSP Series enables you to achieve sustained high-performance results. Our Consultative Approach Crown builds each VNA truck to the unique specifications of your application and your business objectives. Our consultative approach ensures that your turret truck or fleet meets these needs by focusing on three main criteria: Facilities: Aisle strategy, ceiling and rack heights Load handling: Size, weight, shape and consistency of pallet loads, and racking configurations Performance potential: Simulate scenarios for cost, benefits, and outcomes Crown's exclusive technology-based tools, TSP SureSpec and TSP Estimator help explore these factors to specify the right truck, define the optimal fleet size, and deliver targeted performance results. Achieve Capacity at Height Crown’s exclusive MonoLift Mast makes it possible to move exceptional capacities to impressive heights with confidence. The strengthened, boxed-in sections and heavy-gauge steel construction minimise twisting and swaying - especially when compared to traditional, dual-upright masts.
