TECHNOLOGY
Selective Laser Sintering
Windform® LX 3.0 is a composite polyamide based material reinforced with a new generation glass fiber system.
It is a naturally black material characterized by good tensile strength and stiffness.
Windform® LX 3.0 has improved the already excellent performance of Windform® LX 2.0. These improvements can be noticed from a sinterability standpoint. It maintains the Windform® LX 2.0 technical and thermal properties.
Windform® LX 3.0 is also characterized by high level of temperature resistance (HDT, 1.82 Mpa, is 175,9°C / 348.62 °F) and has been rated HB according to the flammability UL 94 test.
It is also not electrically conductive with CTI 600.
Windform LX 3.0 has passed ESA standard screening outgassing tests for space-flight applications.
Applications

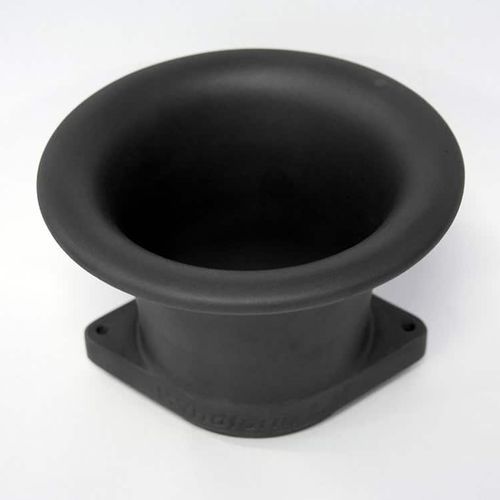

Windform® LX 3.0 is an entry-level SLS material and is perfect for creating functional prototypes or finished parts that require reliability, resistance and aesthetical properties.
Windform® LX 3.0 has an excellent surface finish in its sintered state; it is perfect for components with fine details.
Windform® LX 3.0 is highly recommended for applications that require a strong visual impact and for aesthetical and design parts.
