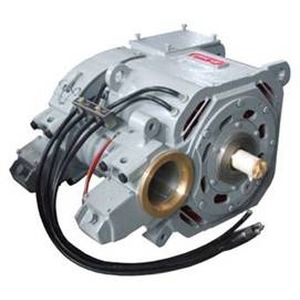

Brushed motor ZD126EDCforced-ventilatedfor railway applications
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Cooling mechanism
- forced-ventilated
- Applications
- for railway applications
- Power
323 kW
(439.16 hp)- Intensity
Max.: 1,000 A
Min.: 295 A
710 A
- Rotational speed
Max.: 3,100 rpm
(19,477.8745 rad.min-1)Min.: 0 rpm
(0 rad.min-1)740 rpm
(4,649.5571 rad.min-1)
Description
SPECIFICATION
Rated speed 740/min
Rated efficiency 91% Maximum speed 3100r/min
Insulation class H Working duty continuous
Cooling air 80m³/s Weight ≤1700kg
Ventilation Forced ventilation Excitation rate 100%
Excitation method Series excitation Maximum voltage 1200V
