Synchronous motor YJ157ADC4-poleair-cooled
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Number of poles
- 4-pole
- Cooling mechanism
- air-cooled
- Applications
- for railway applications, traction
- Power
Min.: 0 kW
(0 hp)425 kW
(577.84 hp)Max.: 450 kW
(611.83 hp)- Intensity
Min.: 0 A
200 A
Max.: 280 A
- Torque
Min.: 0 Nm
(0 ft.lb)6,750 Nm
(4,978.544508 ft.lb)Max.: 9,500 Nm
(7,006.840418 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)600 rpm
(3,769.9112 rad.min-1)Max.: 3,220 rpm
(20,231.8567 rad.min-1)
Description

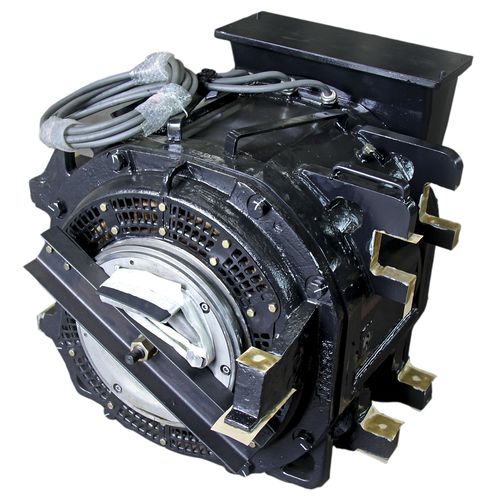

YJ157A AC traction motor is used for 4500HP diesel freight loco of WDG4, the main type of locomotive in India. (Qty: 1140 sets from 2015 to 2016)
