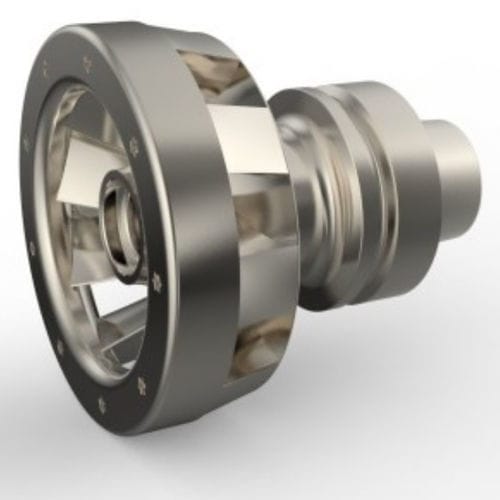

HSK tool holder AER-2 series

expanding sleevefor machiningstandard

For Nesting cabinet/MDF with straight and profiled HSK20E inserts. The Aerotech System E is the best solution for the highest performance and production volume. Advantages The HSK clamping system grants exceptional axial and radial accuracy. Cutters with HSK cone are lighter, shorter and stiffer compared to conventional tools. High speed machining and faster electro-spindle rotation. Technical features Machine interface: HSK-F 63 Clamping system: HSK20E Run-out: <0,003 mm x 2.5 D Torque: up to tool failure Rpm: max 24.000 Balance: G<2,5 at 25.000 rpm Aerotech diameter: 95 mm / 105 mm Weight: 1,9 kg - 2,1 kg (without tool) Flange: patented Faceplate grill (AER-27F) or Standard flange (AER-28A) Applications Nesting cabinet with straight inserts (AER-27F) Nesting MDF with straight and profiled inserts (AER-28A)
