Portable enclosure SCE100 Seriesrectangularfiberglassdata
Add to favorites
Compare this product
Characteristics
- Construction
- portable
- Configuration
- rectangular
- Material
- fiberglass
- Application
- data, PLC
- Protection level
- NEMA 4X, IP66
- Width
302 mm
(11.9 in)- Height
349 mm
(13.7 in)- Depth
176 mm
(6.9 in)
Description

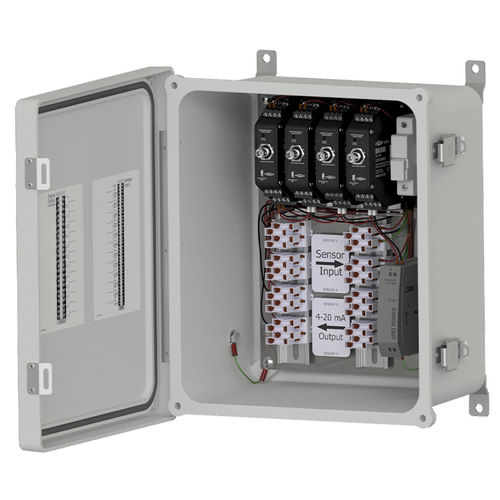

Fiberglass Enclosure for 1 to 4 SC300 Series Signal Conditioners, NEMA 4X (IP66) Rated
Provides 4-20 mA Signals along with dynamic outputs from remotely installed accelerometers to PLC/DCS systems and portable data collectors
Accommodates up to 4 SC300 Series Signal Conditioners factory wired to power supply
Accepts up to 4 single output sensor inputs for a maximum of 4 channels of measurement
Includes DC Power Supply with 100-240 VAC Input
Signal conditioners sold separately
Catalogs
No catalogs are available for this product.
See all of CTC‘s catalogs
