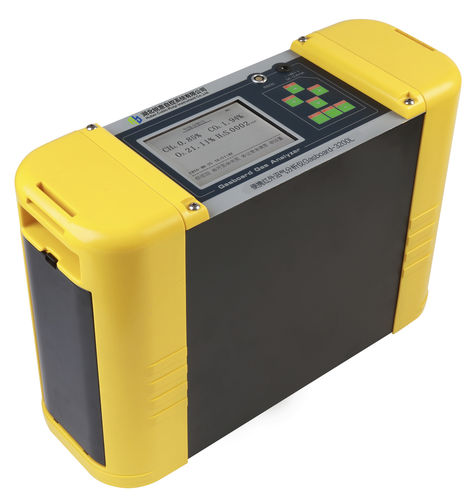

Biogas analyzer Gasboard-3200L

CH4CO2/02hydrogen sulfide

Description Gasboard-3200L portable biogas analyzer is designed to measure CH4, CO2, H2S and O2 concentration simultaneously in different biogas applications, like landfill, water treatment, CDM projects, anaerobic digestion and other fermentation processes, based on NDIR technology for CH4, CO2 gases, ECD technology for H2S and O2 gases. This model can be powered by lithium battery ensure easy carrying among different measuring points. Features • Modular NDIR and ECD sensors design, easy for maintenance. • Thermostatic design for sensors to reduce temperature fluctuation influence. • Light-weight design for easy carrying among different sites. • Rechargeable Lithium battery supports up to 8 hours continuous working. • In-built memory for up to 2560 units of records, easy to download the data to PC. • Optional gas conditioning device for analyzer protection. Specifications Measurement: CH4, CO2, H2S, O2 Technology: CH4， CO2 (NDIR)，H2S, O2 (ECD) Range: CH4: 0-100%,C02: 0-50%,H2S: 0-9999ppm, O2: 0-25%(Note： measurement range can be customized.) Resolution: CH4,CO2,O2: 0.01%,H2S: 1ppm Precision: C02, CH4: ≤1%FS;H2S, 02: ≤2%FS Repeatability: CH4, H2S, CO2,O2 ≤1% Gas flow: 0.7-1.2 L/min Inlet pressure: 2kPa-50kPa Sampling gas condition: no dust, no water, no tar Response time(T90): <10s (NDIR) Communication interface: RS-232 Power supply: built-in rechargeable lithium battery Work temperature: 0-50°C Relative humidity: <95% non condensing Ambient pressure: 86-108kPa Applications Landfill site Waste water treatment Bio-methane plant CDM project Anaerobic digestion Other fermentation processes
