Laboratory measurement system Gasboard-9806

for the automotive industrynot specifiedhigh-sensitivity

Product Overview

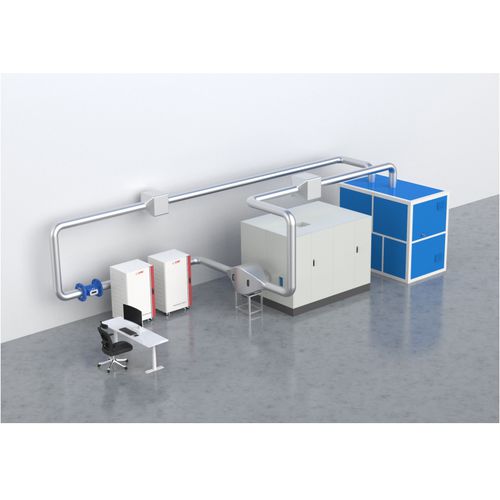

The Gasbaord-9806 Brake Particulate Emission Measurement System is a comprehensive solution developed for standardized measurement of particulate emissions generated by brake wear under controlled conditions. Based on advanced Condensation Particle Counting (CPC) technology, Gasboard-9806 provides accurate and repeatable quantification of particulate mass and particle number in compliance with Euro 7 and UN GTR No. 24 requirements. Gasboard-9806 integrates several subsystems to achieve precise and repeatable brake-emission measurements. The inertia brake dynamometer provides controlled braking cycles for brake-wear particle generation. The duct control system and particle sampling system regulate flow and sampling conditions to ensure stable and representative aerosol delivery to the analysis unit. The CPC-based particle analysis system measures solid particle number (SPN) and total particle number (TPN) down to 10 nm and determines PM10 and PM2.5 mass concentration. The main control system manages overall coordination and data acquisition. The system enables accurate and stable dynamic benchmarking of brake-wear particle emissions, providing a reliable basis for predicting how factors such as material composition, brake size, duty cycle, and vehicle application influence emission levels and for guiding the optimization of brake-system design.

Gasboard-9806 is ideal for testing centers, vehicle manufacturers, and brake-component suppliers conducting type-approval, production-conformity, and R&D evaluations.

Standards: UN GTR No. 24 | Euro 7
Application Background

Brake wear is a significant and growing contributor to non-exhaust, traffic-related particulate matter (PM), placing it under increasing scrutiny from regulatory bodies worldwide. The Euro 7 regulation (EU 2024/1257) sets stricter limits for vehicle emissions and extends regulation to non-exhaust sources. While CVS, engine emission measurment system, and PEMS remain essential for vehicle exhaust testing, the brake particle emissions have now become critical certification focus too.

Cubic Brake Particulate Emission Measurement System delivers a fully compliant, future-ready solution designed to meet global standards including UN GTR-24 and evolving CARB requirements, enabling accurate measurement of both particulate mass (PM10, PM2.5) and particle number (SPN10, TPN10). As non-exhaust particulate emissions take center stage in environmental regulation, our system ensures you stay ahead with reliable data, global acceptance, and scalable technology.
Features

• Employs advanced Condensation Particle Counting (CPC) technology for particle-number measurement, ensuring high detection sensitivity, accuracy, and repeatability.
• Applies advanced fluid-dynamics simulation for system design and optimization, reducing particle loss and improving aerosol mixing uniformity at sampling points.
• Supports compliance with new international brake emission standards, including UN GTR No. 24 and Euro 7, providing standardized testing capability for certification and conformity-of-production assessments.
• Performs fully automated execution of the WLTP brake test cycle through dedicated Cubic Instruments software, providing UN GTR No. 24–compliant test reports.
• Demonstrates proven reliability through extensive laboratory validation, ensuring stable operation and consistent measurement accuracy over long-term use.

Specifications
Duct Control System

Flow control range: 100–2000 m3/h
Flow control stability: ≤±5% of set value
Flow measurement accuracy: ≤±1.5% of reading
Cooling air temperature: 23℃ ±2℃
Cooling air humidity: 50% ±5% RH
Cooling air filtration: activated carbon filter and H13 particulate filter
Particle Sampling System

Maximum particle size cut-off: 2.5 µm and 10 µm
Filter paper sampling temperature: ≥15℃; no condensation
Filter paper diameter: 47 mm
Sampling flow rate: 16.7 L/min
Sampling flow control accuracy: ≤±2% of set value
Particle Number Analysis System

Measurement principle: Condensation Particle Counting (CPC)
Measurement items: TPN10; SPN10
Maximum particle size cut-off: 2.5 µm
Minimum particle size: 10 nm; counting efficiency: 10 nm: 65% ±15%; 15 nm: >90%
CPC measurement range: 0–100,000 #/cm3
CPC measurement accuracy: ≤±10%
Primary dilution factor: 10
Secondary dilution factor: 10–30
VPR removal efficiency: >99.9%
Response time: T90 < 5 s
Why Choose Cubic

• Proven Industry Expertise: Leverages decades of experience in automotive emission testing, combining deep understanding of global regulations with advanced system design capabilities.
• Regulatory Insight & Adaptability: Closely tracks evolving emission standards and continuously refines system design to keep every solution aligned with international regulatory frameworks.
• Comprehensive Testing Solutions: Provides a complete portfolio of automotive emission testing systems, including laboratory CVS dilution systems, portable emission measurement systems (PEMS), and Brake Emission Measurement Systems, demonstrating full capability to deliver integrated, end-to-end solutions.
• Guaranteed Measurement Accuracy: Utilizes innovative, self-developed sensing technology platforms to ensure precise, reliable and regulation-compliant measurement results across all automotive emission testing scenarios.
