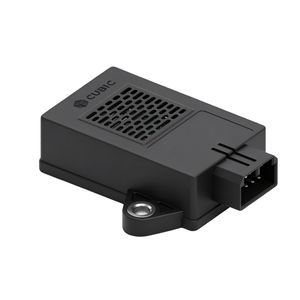

Thermal runaway gas sensor module ATRS-1010

CO2CONDIR

ATRS-1010 sensors can effectively monitor CO2, CO/HC/H2 released before the thermal runaway trigger of lithium-ion batteries, as well as temperature and pressure, and transmit the measurement signal via CAN communication to new energy battery management system (BMS), to formulate safer early warning strategies. Cubic has mastered a variety of gas sensing and detection technologies. In view of the performance requirements of sensors for thermal runaway monitoring, such as fast response time, accurate measurement, less cross interference, long service life and low power consumption, Cubic innovatively combines non-dispersive infrared (NDIR) spectroscopy and MEMS metal oxide semiconductor technology (MOX), an integrated sensor solution integrating a variety of core sensor technologies is introduced, which can effectively and accurately measure combustible gas.

Features

• Non-dispersive infrared (NDIR) technology adopted for fast response and high accuracy CO2 concentration measurement
• Microelectronic Mechanical Systems adopted for fast response and high selectivity on CO/HC/H2 measurement
• Integrated automotive sensor measures both CO2, CO/HC/H2, and temperature
• Key components are self-made to ensure quality and long life span
• Target measurement and range customizable
• CAN real time communication and vehicle-level circuit design
• Effectively and accurately measurement for combustible gas
• Comprehensive assessment for li-ion battery thermal runaway
• Reliable early warning for EV battery leakage

Specifications

• Operating principle: CO2: Non-dispersive Infrared Spectroscopy Technology (NDIR); CO: Metal oxide semiconductor technology (MOX)
• Measurement target: CO2,CO/HC/H2,Temperature
• Measurement range: CO: 0ppm~1000ppm (can display up to 3Kppm); CO2: 0ppm~10000ppm (can display up to 60Kppm); Temperature: -40℃~120℃
• Resolution: CO2/CO: 1ppm; Temperature: 0.1℃
• Accuracy: CO2: ±(50ppm+5%reading); CO: ±40ppm or ±30% reading, larger value as criteria; Temperature: ±2℃
• Response time: T90≤15s
• Working temperature: -40~+85℃,0-95%RH (non-condensing)
• Storage temperature: -40~+95℃,0-95%RH (non-condensing)
• Working pressure: 80kPa~120kPa
• Power supply: 9~16 VDC, standard voltage 12 VDC
• Working current: ≤100mA @12VDC
• Low power consumption mode: ≤50mA @12VDC
• Standby current: ≤100μA
• Communication: CAN
• IP grade: IP54
• Dimension: 77*38*20 (mm)
