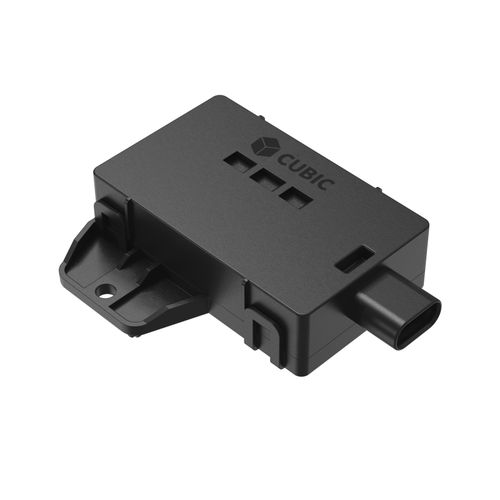

Refrigerant gas refrigerant gas sensor AM4206

NDIRfor leak detection

Cubic AM4206 is an automotive R290 refrigerant leakage monitoring sensor based on Non-Dispersive Infrared (NDIR) technology, specifically designed for detecting R290 gas leaks in automotive HVAC systems. AM4206 can continuously monitor R290 refrigerant leaks in real-time and promptly generate alarm signals via LIN communication. Based on reliable dual-beam design and smart auto baseline mechanism, AM4206 can achieve long-term stability, rapid detection and less gas cross interference, providing an effective and robust solution for safety monitoring, in response to the implementation of EU F-gas Regulation. Features • Dual beam Non-Dispersive Infrared (NDIR) technology, robust detection • Wide measurement range up to 0~100% LEL • Optional Built-in heater to avoid condensation and frost • Less cross-interference with other gases Specifications • Working Principle: NDIR Technology • Measurement Gas: R290 • Measurement Range: 0~100%LEL • Measurement Accuracy: ±2.5%LEL @0%~25% LEL; ±10% of reading @25%~100% LEL • Average Working Current: Heater off ≤50mA; Heater on ≤350mA • Resolution: 0.1%LEL • Response Time: ≤15s @25%LEL (compliance with UL 60335-2-40 4th) • Working Condition: -40~95℃, 0~99%RH (non-condensing) • Storage Condition: -40~110℃, 0~99%RH (non-condensing) • Working Temperature: -40~85℃ • Working Voltage: DC 9~16V, 12V standard voltage • Lifetime: 15 years • Communication: LIN
