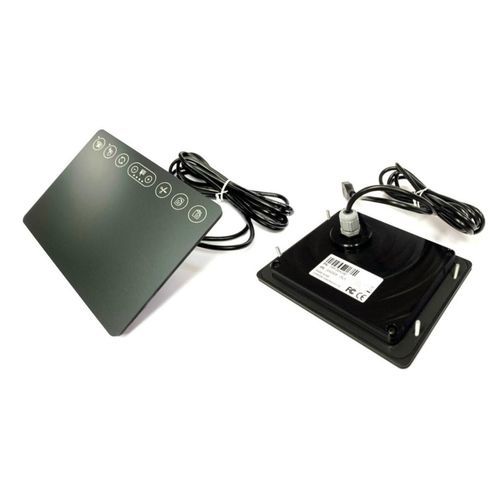

Medical touchpad TPP-55A136industrialmarineOEM
Add to favorites
Compare this product
Characteristics
- Domain
- industrial, OEM, medical, marine
- Material
- glass, plastic
- Protection level
- waterproof, IP65, washdown
- Mounting
- panel-mount, panel-mounted
- Other characteristics
- USB, switches
Description
Product description
The TPP Series panel-mount touchpad module provides conventional X and Y-axis cursor movement with plug-and-play multi-finger gesture support. The mutual-capacitance based tracking engine delivers solid-state sensing (no moving parts) with precision and performance intended for extreme and rugged environments. The design allows easy cleaning, decontamination and maintenance and is intended for front-of-panel mounting as part of OEM keyboards and consoles.
Features
Typical Applications
Product configuration
Datasheets
Technical specifications
The TPP Series panel-mount touchpad module provides conventional X and Y-axis cursor movement with plug-and-play multi-finger gesture support. The mutual-capacitance based tracking engine delivers solid-state sensing (no moving parts) with precision and performance intended for extreme and rugged environments. The design allows easy cleaning, decontamination and maintenance and is intended for front-of-panel mounting as part of OEM keyboards and consoles.
Features
- Solid state sensing technology – mutual-capacitance capacitive touch tracking engine
- Output: USB
- IP65 sealing including back cover
- Haptic and audible feedback (function specific)
- Multi-finger gesture support
- 8 capacitive touch feature buttons (standard)
- Smooth operation in rugged environments
- Tolerant to moisture, water, and liquid contaminants
- Various touch surface overlay options available as standard (polyester or glass)
- Custom feature button configurations and custom overlays available
Typical Applications
- Industrial consoles
- Medical systems
- Marine systems
- Custom keyboard applications
- OEM custom solutions
Product configuration
- Ordering code example displayed on page: TPP-5 5 A 1 X 6
- Sealing Rating: IP65 (option shown)
- Output Protocol: USB (only)
- Integrated Switches: 8 Switches (Standard Set)
- Mounting Style: Front-of-panel mount
- Overlay Colour / Style: TPP Polyester Overlay, Grey OR TPP Glass Overlay, Grey
- Touchpad Size: 6 in (152 mm)
- Suffix: Standard (Haptic & Audible Feedback)
Datasheets
- DSTP005 - 6 in Panel Mount Touchpad - Quick Guide
- DSTP005 - 6 in Panel Mount Touchpad - Technical Datasheet
Technical specifications
- Series: TPP series
- Tracking: Mutual-capacitance capacitive touch sensing
- Cursor control: Conventional X and Y axis tracking
- Gesture support: Multi-finger gestures
- Buttons: 8 capacitive touch feature buttons (standard)
- Feedback: Haptic and audible feedback (function specific)
- Output interface: USB
- Ingress protection: IP65 (including back cover)
- Mounting: Front-of-panel mount (designed for OEM keyboards and consoles)
- Environment: Rugged operation; tolerant to moisture, water and liquid contaminants
- Overlay options: Polyester and glass overlays available; custom overlays available
