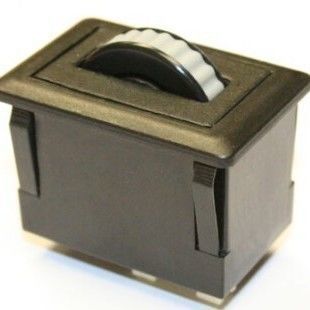

Rotational wheel module SWM-70110- 0

plastic

Product Description
The Scroll Wheel module is designed for snap-in installation into the front face of control panels. It delivers scroll, pan and integrated middle‑button switch functionality comparable to commercial desktop scroll wheels, with configurable options for detent and output protocol. Using non‑contact Hall‑effect encoding, the module provides high reliability and environmental protection up to IP68 for continued operation in harsh conditions.

Features

• Non‑contact Hall‑effect encoding technology
• Sealing rated up to IP68
• Integrated switch function (middle button)
• Optional detent (tactile) scrolling mechanism
• USB & PS/2 (auto‑select) or TTL quadrature output options
• Smooth, reliable operation in rugged environments
• Multiple wheel colour options
• Custom mounting bracket and OEM configurations available

Typical Applications

• Industrial control panels
• Military, marine and medical user interface panels
• Sound and lighting consoles
• Colour correction and broadcast control desks
• OEM custom‑designed user interfaces

Technical specifications

• Mounting: front‑panel snap‑in installation using integrated plastic housing features
• Encoding technology: non‑contact Hall‑effect
• Environmental protection: up to IP68
• Integrated switch: middle button function
• Detent: optional detent/tactile mechanism
• Output protocols: Quadrature (TTL) or Combined Interface (PS/2 & USB auto‑select)
• Wheel colours: multiple options available
• Ordering code prefix: SWM (configurable options include sealing rating, output protocol, detent, mounting style, backlight, wheel colour)
