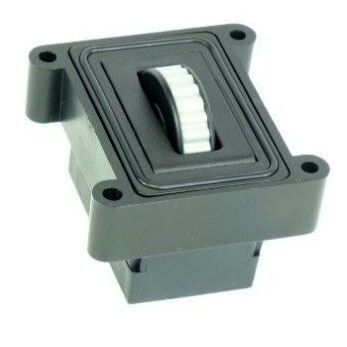

Rotational wheel module SWM-70110- 1

Overview
The DSSW001 Scroll Wheel (rear-panel) module is a human interface device providing scroll, pan and integrated middle-switch functions for OEM keyboards and consoles. It uses non-contacting Hall effect encoding and offers environmental sealing up to IP68, enabling operation in demanding environments. The module is designed for rear-of-panel mounting in industrial and professional control systems.

Features

• Hall effect encoding technology
• Sealing up to IP68
• Integrated switch function (middle button)
• Optional detent scrolling mechanism
• USB & PS/2 (auto-select) or TTL quadrature output
• Designed for operation in rugged environments
• Various wheel colours available
• Custom mounting bracket options available

Typical Applications

• Industrial control panels
• Military, marine and medical user interface panels
• Sound and lighting consoles
• Colour correction consoles
• OEM custom solutions available

Ordering code / Configuration
Ordering code shown on page: SWM - 7 X 1 1 0 X

• Sealing Rating: 7 - IP68 (default/checked)
• Output Protocol options: 0 - Quadrature; 6 - Combined Interface - PS/2 & USB (auto-select)
• Detent Options: 1 - Detent (default/checked)
• Mounting Style: 1 - Mount to back of panel (default/checked)
• Backlight: 0 - No Backlight (default/checked)
• Wheel Colour options: 1 - Grey; 0 - Black

Technical specifications

• Model: DSSW001
• Module type: Rear panel (back of panel) mounted scroll wheel module
• Encoding technology: Non-contacting Hall effect
• Environmental protection / Sealing: Up to IP68
• Integrated functionality: Scroll, pan and middle switch
• Optional mechanical: Detent scrolling mechanism available
• Output interfaces: Quadrature; Combined PS/2 & USB (auto-select); TTL quadrature option
• Mounting: Designed for rear panel mounting into OEM keyboards and consoles
• Wheel colours: Grey and Black (various colours available)
• Customisation: Custom mounting bracket options and OEM custom solutions available
