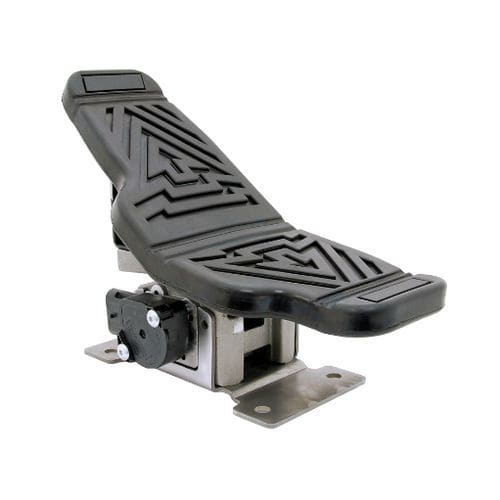

Control pedal WM-575

electronicsingle pedalIP67

The WM-575 Hall-Effect Rocker Pedal is built for the demanding off-highway environment. Its robust design is extremely durable and exhibits outstanding performance for open cab applications. 14° ± 2° Angular Rotation, Fore & Aft FMVSS 124 and 302 compliant -40°C to + 85°C Operation + 5V Operation Electronics IP67 Sealed Dual Ratiometric APS Output Independent, Isolated APS Circuits Protected against Electrical Misconnection Metripak 150-series compatible connector Non Contact Sensor Highly EMI Resistant Black Coated Steel Base and Treadle Chromate Conversion Module Components The design of the WM-575 allows programming of the sensor on the rocker pedal to achieve a highly accurate output. The sensor provides a ratiometric signal that is interpreted by the vehicle controller. The electronics are IP67 sealed and highly EMC resistant (SAE J1113). The Hall Effect Pedal is floor mounted and designed for fore and aft movement. It has a rubber cover for foot traction and is made out of a corrosion resistant coated metal. The product can be customized for side-to-side movement.
