Arens' line of mechanical controls for powershift transmissions are available with one (T12) or two (T20) levers to activate push-pull cables.
Integrated system approach with both the Control and Connector Kit
Designed specifically for use on heavy-duty mobile equipment
All wearing surfaces, including the levers and gate plates, are case-hardened steel
The gate plate and output levers are arranged to move to reverse and low gear with the same lever movement
The controls are assembled to accommodate any standard 3" stroke push-pull cable having 1/4-28 or 5/16-24 rod ends
Gate plate markings are silk-screened in bold, white characters and over-coated with clear polyurethane
For manual control of hydrostatic valves
T12 Series - Single Lever Control

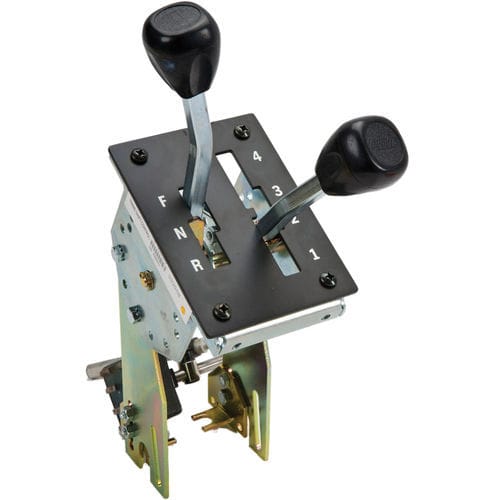

T20 Series - Dual Lever Control
While the control levers are the most visible part of the system, the key to a functional control system is the Transmission Connector Kit (TCK). The TCK is the device that moves the transmission control valves, thereby translating the motion of the control lever to the valves on the transmission. The Arens TCK allows smooth and effortless shifting.
Special designs incorporating multiple lever packages, interlocks, mechanical or electrical output, and other requirements have been developed to individual customer specifications.
Applications
Aircraft tow tractors
Cargo loaders
Hydraulic cranes
Lift/Reach trucks
Log skidders
Mine loaders
Motor graders
Railway equipment
