Fiber optic measurement kit ST3200

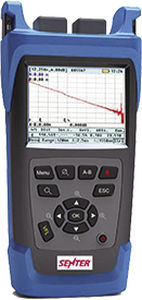

ST3200 is a smart optical line tester. It performs Optical Time Domain Reflectometry tests to qualify and diagnostic fiber optic communications. ST3200 is a handheld field equipment with a large touch screen and 20 hour battery operation. ST3200 performs distance and loss measures with 1310 and 1550 nm wavelengths. It detects fiber fault points with 2 meter accuracy. It provides graphical analysis of the optical impulse response in the range of 10 ns to 20 µs. General Connectors : FC – PC Size : 220 x 105 x 60 mm Weight : 1 kg Battery autonomy : 20 H Measures Fiber : mono-mode Wavelength : 1,310 an 1,550 nm Dynamic range : 28 or 32 dB Distance : 1 to 120 km or 160 km Fault detection : +/- 2 m Impulse response test : 10/20/50/100/200/500 ns and 1/2/5/10/20 µs Impulse test memory : 10,000 curves
