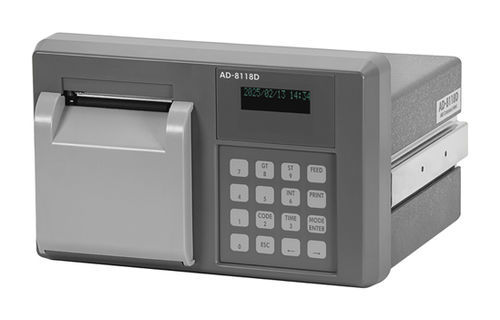

Thermal transfer printing unit AD-8118D

Product Type: Panel-mount thermal printer for A&D indicators, scales, and electronic balances. Features: - Date and Time Printing: Equipped with a calendar clock that automatically prints the date and time. - High-Speed Thermal Printing: Utilizes a 24-digit thermal printing mechanism with a printing speed of approximately 4.0 lines/second. - Data Accumulation & Statistics: Functions for total (grand total) printing, subtotal printing, and statistical results printing by code number. Totals and subtotals are stored in non-volatile memory and are retained even when the unit's power is turned off. Versatile Print Options: - Manual printing: Print when the [PRINT] key is pressed or a print command is received via control input - Automatic printing: Print when weighing data is received from an external device - Interval printing: Print at set time intervals - Dump printing: Print received data exactly as received Customizable Output: Programmable print format, allowing users to edit and customize printed content. Built-in Interface: RS-232C or current loop (serial input) (switchable) Specifications: - External dimensions: 192 (W) × 181 (D) × 120 (H) mm - Installation method: Panel mounting - Operating temperature and humidity range: 5 to 40 °C, 80% RH or less, no condensation - Power supply voltage: 100 to 240 VAC +10%/-15%, 50/60 Hz ±5% - Maximum apparent power: 25 VA - Inrush current: 100 V AC: 15 A or less; 230 V AC: 35 A or less - Fuse: Internal (not user-replaceable) - Printing system: Thermal printer (direct thermal printing) - Printing width: Standard character: 12 × 24 dots, 24 columns/line; Enlarged character: 24 × 24 dots, 12 columns/line - Character size: Standard character: 1.5 (W) × 3.0 (H) mm; Enlarged character: 3.0 (W) × 3.0 (H) mm - Printing speed: Approx. 4.0 lines/sec - Printer paper: Width of roll paper 58 mm, 1 roll included as standard - Display: LCD display, 16 columns, 2 lines (Character width: 1.86 × height 4.56 mm) - Key switches: 16 - Serial input: Current loop input/RS-232C - Serial output: Current loop output - Non-voltage contact input: 16 points - NPN open collector output: 2 points Standard Accessories: - Power cable - Ground adapter: 1ETMK-18 - Printer paper (1 roll included as standard): AX-PP147-S (Set of 5 rolls) - Rubber foot: 110SJ-5023 - Round DIN connector, 7 pins (soldered connection): 1JATCP0576 - Control I/O connector case: 1JI360C024-B - Control I/O connector (soldered connection): 1JI361J024-AG - Simplified Instruction Manual: 1WMPD4005326 Optional Accessories: - AX-PP147-S: Thermal printer paper (5 rolls) Technical Specifications: - External dimensions: 192 (W) × 181 (D) × 120 (H) mm - Panel mounting - Operating temperature: 5 to 40 °C, 80% RH or less, no condensation - Power supply: 100 to 240 VAC +10%/-15%, 50/60 Hz ±5% - Maximum apparent power: 25 VA - Inrush current: 100 V AC: 15 A or less; 230 V AC: 35 A or less - Internal fuse (not user-replaceable) - Thermal printer (direct thermal printing) - Printing width: Standard character: 12 × 24 dots, 24 columns/line; Enlarged character: 24 × 24 dots, 12 columns/line - Character size: Standard: 1.5 × 3.0 mm; Enlarged: 3.0 × 3.0 mm - Printing speed: Approx. 4.0 lines/sec - Printer paper: 58 mm width, 1 roll included - LCD display: 16 columns, 2 lines - 16 key switches - Serial input: Current loop input/RS-232C - Serial output: Current loop output - Non-voltage contact input: 16 points - NPN open collector output: 2 points
