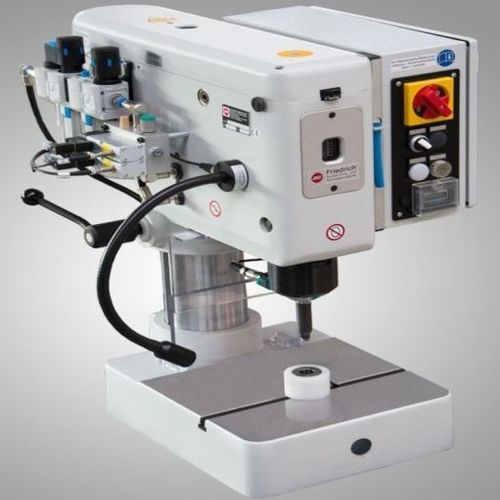

Manual riveting machine N200
pneumatic

manual riveting machine
manual riveting machine
Add to favorites
Compare this product


Characteristics

Control
manual
Operation
pneumatic
Rivet diameter

Max.: 8 mm (0.3 in)

Min.: 3 mm (0.1 in)

Description

Technical Data Rivet diameter (Rm=370 N/mm²) 3-8 mm Riveting power at 6 bar pneum. 12 kN Spindle stroke 6-30 mm Operating pressure 1-6 bar Motor 230/400 V 50 Hz 0,74 kW Cylinder volume max. 1,45 l Weight ca. 162 kg Working area 117-297 mm Projection 168 mm Clamping area 320x290 mm Effective stroke 24 mm
