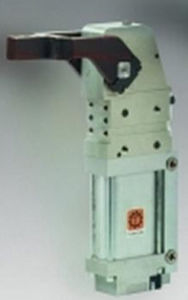

Pneumatic clamp V – WP
adjustablewaterproof

pneumatic clamp
pneumatic clamp
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Other characteristics
adjustable, waterproof

Description

Vario Clamps – Waterproof V – WP Automation Technology Clamping Technology E-Clamp, Expansion Mandrels, Swivelling Clamps and Accessories. Special water-protected clamp according to IP65 with toggle joint mechanism and continuously adjustable opening angle, over-centre-lock. Encapsulated two-part special housing, anodised, bearing with external seal, oval-shaped cylinder in the sizes 50, 63, 80. Fork shaped clamp arm with corrosion prevention agent chromium nitride, standard hole pattern for adapting contour blocks. Continuously adjustable opening angle 45°-135°. End position sensing forward/backward with sealed M12 bullet connector. Pneumatic supply connection for sealing air (0,2-0,4 bar) for additional securing of the mechanical components. Clamping moment: 160.00 Nm Weight: 4.30 kg Dimensions (L*W*H): 345.00 x 114.00 x 48.00 mm
