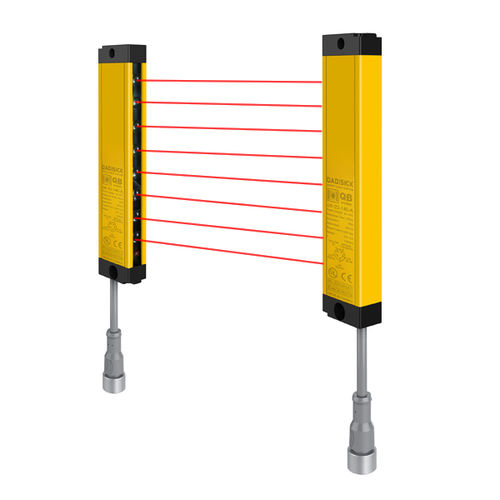

type 4 safety light curtain / type 2 safety / multibeam / through-beam
QB12/20-220

{{requestButtons}}

Characteristics

  • Function:

    type 4 safety, type 2 safety

  • Type of beam:

    multibeam

  • Configuration:

    through-beam

  • Protection level:

    impact-resistant

  • Other characteristics:

    finger protection, compact

  • Operating range:

    Max.: 2.5 m (8'02")

    Min.: 0.3 m (0'11")

Description

While further improving the performance, the volume of the internal unit is reduced by 57% compared with the conventional method, and the miniaturization is successfully achieved.

Product Features

1.Perfect self-examination function

2.Strong anti-interference ability

3.Easy to install and adjustable

4.Surface mount technology for superior shock resistance.

5.IEC61496-1/2 standard of Type 4/ CE certificate/ Type 2, Type 4.

6.Short reaction time (≤20ms), Safe and reliable.

7.Ultra-small design. Width and thickness of only 30 * 15mm, effectively reduce the installation space

8.Using world-renowned brands electronic components.

9.Appearance is exquisite and compact,detection range is around 2.5 meter.

10.While further improving the performance, the volume of the internal unit is reduced by 57% compared with the conventional method, and the miniaturization is successfully achieved.
