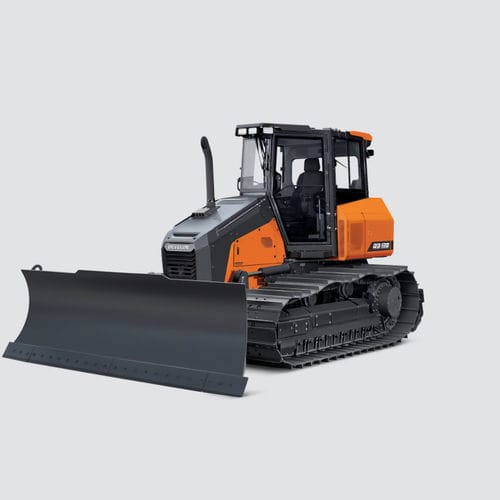

Crawler bulldozer DD130

outdoorfor constructionforestry

Overview
The mid-size Develon DD130 is a construction dozer engineered for residential and light commercial earthworks, as well as forestry, pedestrian roads, parking facilities, platforms and recycling projects. It combines a Stage V Perkins engine with a compact operating weight and advanced assist features to improve on-site productivity.

Applications

• Residential construction
• Light commercial construction
• Forestry
• Pedestrian roads and walkways
• Parking facilities and platforms
• Recycling and material handling sites

Key features

• Standard 2D Dozing Assist for blade cross-slope control without GPS or lasers
• 6-way power-tilt angle blade (tilt, lift & angle) to reduce passes
• Perkins 1204J Stage V engine — 117 kW (157 HP) @ 2200 rpm
• Compact base operating weight (~14.5 t) for mobility in confined sites
• Main pumps maximum flow 132 l/min and travel speed up to 9 km/h

Comfort & operator environment
The DD130 offers a spacious cab with panoramic all-glass visibility, an intuitive 8-inch touchscreen, standard rearview camera, premium wipers and an adjustable air-suspended seat to reduce vibration and operator fatigue during long shifts.

Visibility & cooling
Designed for clear sightlines: narrow front profile, under-hood pre-cleaner, rear-mounted radiator and hydraulic oil cooler, and all-glass cab doors to keep the blade and work area in view.

Safety

• ROPS and FOPS compliant cab structure
• Standard rearview camera
• Seatbelt warning alarm and rotating beacon
• Operator Presence Switch (OPS) that stops the machine when the operator leaves the seat

Reliability & maintenance
High-efficiency pre-cleaner, smart cooling and tuned fuel system for consistent performance. Ground-level maintenance points, tiltable cab and centralized grease points simplify service and reduce downtime.

Power & performance
Perkins 1204J Stage V engine, main pump flow 132 l/min, travel speed up to 9 km/h and maximum traction force 22 t. The compact operating weight (~14.5 t) balances stability and maneuverability for confined jobsites.

Technology & machine control
Optional integration with Leica iCON iGD3 3D machine control and MC1/iCON iGD technologies provides advanced guidance for fewer passes, improved accuracy and live progress views for operators and project managers.

Specifications (table)
Engine: Perkins 1204J
Engine power: 117 kW (157 HP) @ 2200 rpm (SAE J1349)
Emission standard: Stage V
Operating weight: 14.5 t
Travel speed: 9 km/h
Main pumps max flow: 132 l/min
Max traction force: 22 t

Characteristics / technical specifications

• Model: DD130
• Engine: Perkins 1204J
• Engine power: 117 kW (157 HP) @ 2200 rpm (SAE J1349)
• Emission standard: Stage V
• Operating / base weight: 14.5 t
• Travel speed: 9 km/h
• Main pumps max flow: 132 l/min
• Max traction force: 22 t
• Blade: 6-way power-tilt angle blade (tilt, lift & angle)
• Standard guidance: 2D Dozing Assist (standard)
• Cab features: 8-inch touchscreen, rearview camera, premium wipers, adjustable air-suspended seat
• Visibility features: under-hood pre-cleaner, rear-mounted radiator & hydraulic oil cooler, all-around glass
• Safety features: ROPS/FOPS, seatbelt warning alarm, rotating beacon, Operator Presence Switch (OPS)
• Serviceability: ground-level maintenance points, tiltable cab, centralized grease points
• Optional integration: Leica iCON iGD3 3D machine control and MC1 / iCON iGD technologies
