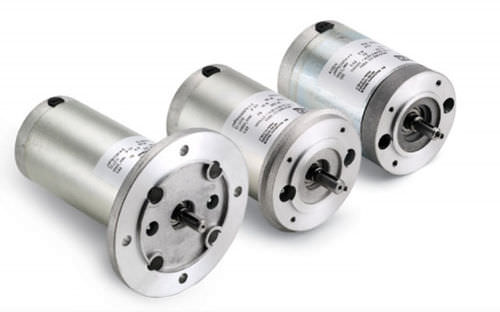

Synchronous motor ME56 seiresDC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Voltage
- 24 V, 12 V
- Configuration
- permanent magnet
- Protection class
- waterproof
- Power
Max.: 280 W
(0.38 hp)Min.: 30 W
(0.04 hp)- Torque
Max.: 2 Nm
(1.475124 ft.lb)Min.: 0.2 Nm
(0.147512 ft.lb)- Rotational speed
1,000 rpm, 1,500 rpm, 2,500 rpm, 3,000 rpm
(6,283.1853 rad.min-1, 9,424.778 rad.min-1, 15,707.9633 rad.min-1, 18,849.5559 rad.min-1)- Diameter
9 mm, 11 mm
(0.35 in, 0.43 in)
Description
Dagu proposes
The Dagu range of motors can satisfy the most specific and diverse requirements
and applications, some of which are listed below:
- Powers from 30 to 2000 W for intermittent or continuous duty;
- Standard or customized construction forms and dimensions;
- Waterproof or open motors with different degrees of protection;
- EMI suppression filters (standard in many motors);
- Position, speed and shifting sensors such as encoders, can be fitted on request;
- Electromagnetic brakes on request;
- Reduction gears on request;
- Incorporated or separate electronic controls on request.
