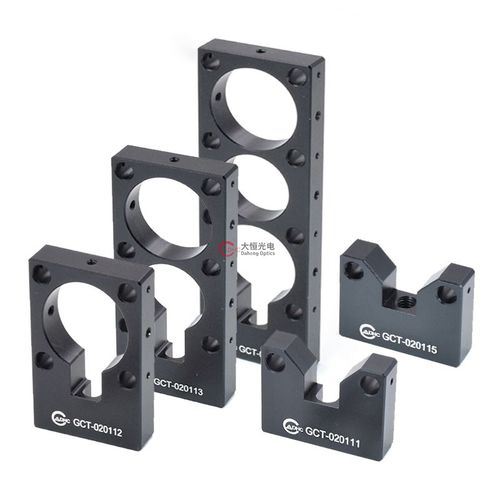

Optical support GCT-02011 series

for cage systems

This series support mounts belongs to the bottom support device of the cage system structure. It uses for firmly connecting the standard support rods of 30mm pitch with a fixed center optical axis height and optical platform or other mounting planes. According to the height of each support mount, there will be different rows of Ø6mm holes for cage rods. The cage rods can be mounting on the optical installation plane with different center optical axis height. GCT020112, GCT-020113 and GCT-020114 have Ø25mm or Ø30mm holes for mounting GCT-0310 series adapters, so that various components can be carried into the optical system. The mounting holes of M6 screws are reserved at the support mount, which can be connected with the mounting surfaces of the platform.
