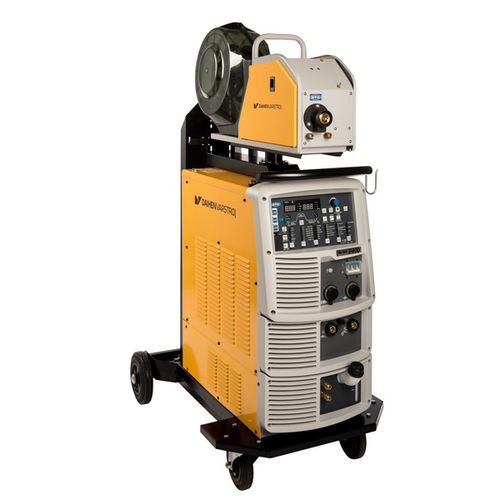

Power DC/AC inverter Welbee P 400
three-phaseelectronic equipment

Power DC/AC inverter - Welbee P 400 - DAIHEN VARSTROJ - three-phase / electronic equipment
Power DC/AC inverter - Welbee P 400 - DAIHEN VARSTROJ - three-phase / electronic equipment
Add to favorites
Compare this product

Characteristics

Electrical characteristics
power, three-phase
Applications
electronic equipment
Output power kVA

Min.: 17.4 kW
(23.657408 hp)

Max.: 19.2 kW
(26.104726 hp)

Output voltage

34 V

Voltage

Min.: 12 V

Max.: 45 V

Primary current

Min.: 30 A

Max.: 400 A

Description

Technical data Specification / model WB-P400 Model number of phases 3 Rated Frequency 50/60 Hz Power supply 400 V ± 15% Power consumption 19.2 kVA, 17.4 kW Intermittency100 %370 A Rated primary current 27.6 A Nominal output current 400 A The nominal output voltage 34 V The area of the welding current 30 to 400 A The area of the welding voltage 12 to 34 V The open circuit voltage max. 80 V Rated intermittency 50 % Number JOB-s 100 Working temperature -10 to 40 ℃ Storage temperature -20 to 55 ℃ External dimensions (WxDxH) 395 mm × 710 mm × 592 mm (without o-screw) Weight* 62 kg Static characteristic Constant voltage characteristics Ordering code604525 Torch typeABIMIG W 540 (4m) Torch code610376
