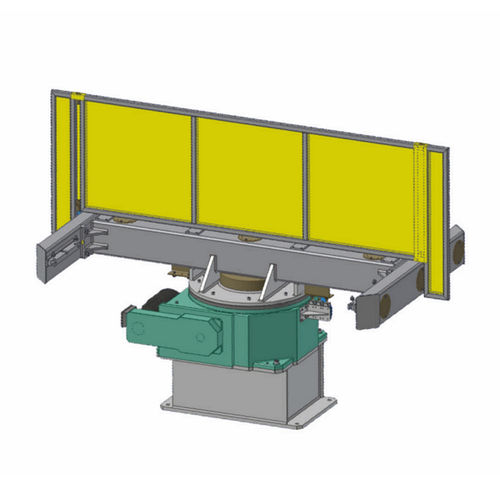

Electric positioner

rotary

Features: Operating of positioner is done from the console for robot programming; Weiss rotary table for horizontal rotation of the table; Possibility of synchronous operation of the welding robot with the positioner; Integrated connector for mass (500 A), Hollow shaft on the free clamping plate enables the supply of compressed air and control conductors; TypeHZP-250/EO-2x HZP-300/EO-2x HZP-500/EO-2x HZP-750/EO-2x Number of sides2 (A,B)2 (A,B)2 (A,B)2 (A,B) Max. payload by side (A and B)250 kg300 kg500 kg750 kg Max. rotation radious575 mm575 mm575 mm575 mm Distance between the clamping plates1.750 mm2.000 mm2.150 mm2.150 mm Turning time for 180°cca 4 s5 s8 s5 s Rotation speed23,8 min-111,2 min-111,2 min-111,2 min-1 Nominal moment - rotation412 Nm1.225 Nm1.225 Nm1.225 Nm Rotation angle+/-200°+/-200°+/-200°+/-200° Positioning repetance (R=100mm)+/-0,2 mm+/-0,2mm+/-0,2mm+/-0,2mm Drive unitWEISS TC700WEISS TC700WEISS TC700WEISS CR700
