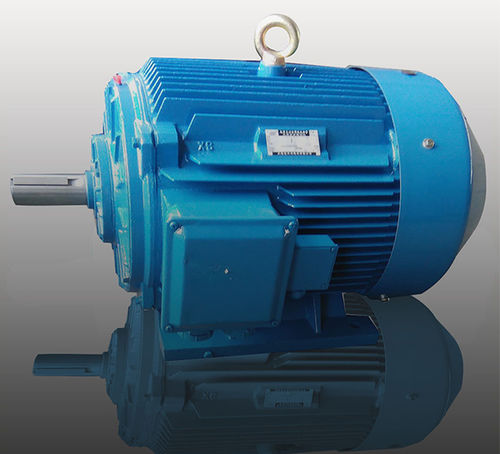

Asynchronous torque motor YE2 series

three-phase380 VTEFC

YE2 series motor is totally enclosed fan cooled squirrel cage three-phase asynchronous motor, the motor efficiency is our company according to the latest national standard "energy efficiency in small three-phase asynchronous motor is of limited value and energy efficiency rating" GB18613 2012 completely independent design, the efficiency index reached the standard of energy efficiency rating of 3, which is equivalent to in the International Electrotechnical Commission IEC60034 30-2008 IE2 high efficiency index and the EU EFF1 standard, high efficiency motor that our YE2 is equivalent to Europe and the United states. YE2 series high efficiency motor has the characteristics of high efficiency, low noise, low temperature rise, high overload ability and high reliability. The installation dimensions and power levels are fully in conformity with IEC and DIN42673 standards. This series of motors with class F insulation, temperature rise test according to B grade, grade IP55, cooling method of IC411, continuous S1, rated voltage 380V, rated frequency of 50Hz, 3kW and below "", 4kW and above for the "delta". For the convenience of the user, the junction box is located at the top of the seat and can also be left and right. YE2 series high efficiency motor is a general purpose motor, which can drive all kinds of mechanical equipment without special performance requirements. Driving constant load energy saving effect is better, such as fan, pump, all kinds of machine tools and so on.
