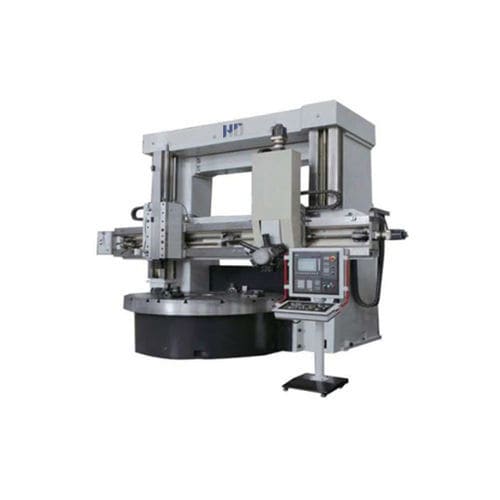

CNC lathe CK52 series

verticalhigh-precisionhigh-performance

Use advanced modular design, FEM analysis, integrated use of mechanical, electical and hy draulic techniques, to guarantee high precision machining performance. Feature ◆Use advanced modular design, FEM analysis, integrated use of mechanical, electrical and hydraulic techniques to guarantee high precision machining performance. ◆SIEMENS 828D CNC control (optional, FANUC and GSK). Except CNC auto running mode, you can also use it in manual way like conventional machine. ◆With big torque variable AC main motor plus gearbox in two steps, with taping function and CSCS(constant surface cutting speed)function. ◆High grade and good quality castings made by our own foundry, following by proper heat treatment, giving the long lifetime and stable accuracy. ◆Cross rail is embedded with alloy steel guide way (W,Cr, Mn), equipping with protect cover too. ◆Hydrostatic working table, constant volume motorized pump, separated hydraulic station, oil cooler, all these advanced techniques assure customer a high and long stable machining accuracy. ◆Auto central lubrication system with regular intervals and volume. ◆High precision ball screws supported with imported bearing support. ◆Grounded gears are used in the gearbox to ensure high precision and long lifetime. ◆Widely using imported key components, electrical components, servo motor, servo drive,hydraulic components, bearing and planetary speed reducer.
