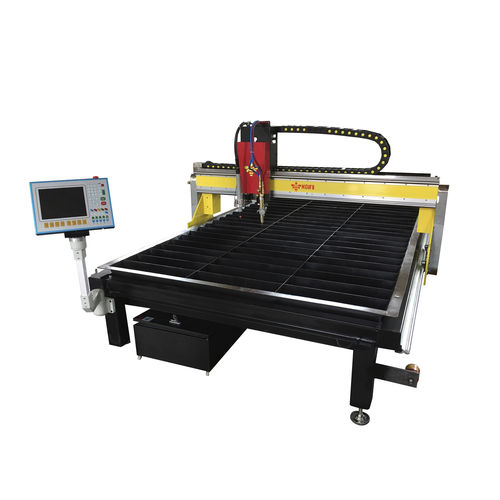

Oxyacetylene cutting machine HBT-1.5X2.5for stainless steelsheet metalCNC
Add to favorites
Compare this product
Characteristics
- Technology
- oxyacetylene
- Material
- for stainless steel
- Product handled
- sheet metal
- Control type
- CNC
- Associated function
- contour
- Other characteristics
- automatic, CE
- X travel
1,600 mm
(63 in)- Y travel
2,500 mm
(98 in)- Cutting speed
Min.: 0 mm/min
(0 in/s)Max.: 36,000 mm/min
(23.622 in/s)
Description
Standard working size 1500mm x 3000mm
Speed:0-36000mm/min
Cutting model:Both plasma and flame,plasma,flame
Equip plasma souce 45A-400Amper
Controller:HBCNC,Hypertherm .
The machine mainly consists of work table, beam, trolley, guide rail and CNC system. Beam and trolley adopts steel structure. Longitudinal direction adopts belt pulley hard synchro structure, transversal and longitudinal guide rails adopt 過25mm ball bearing steel. CNC system adopts 10" Honeybee CNC system, support all kinds of plasma sources.
1.Longitudinal driving adopts belt pulley hard synchro structure. A sychro shaft cross the beam, which realized electrical part and mechanical part synchronized movement.
2.Adopts high torque (15NM) AC servo motor, equal to 4 sets of 750W motors. Speed adjusting range 0--36 m/min.(common machine speed just max 12m/min. High inertia motor driving, machine running more stable, better cutting quality!
3.Adopts synchro belt to buff and absorb shock, get good cutting qualit
