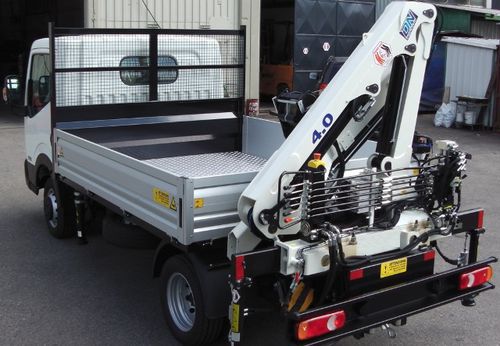

Truck-mounted crane DN 4.0 Series boomfor constructionlifting
Add to favorites
Compare this product
Characteristics
- Configuration
- truck-mounted
- Structure
- boom
- Operating environment
- for construction
- Applications
- lifting
- Other characteristics
- hydraulic
- Load
3.5 t
(3.9 us ton)- Working height
7.2 m, 8.4 m, 9.8 m, 11.1 m
(23'07" , 27'06" , 32'01" , 36'05" )- Horizontal reach
4.5 m, 5.8 m, 7.2 m, 8.6 m
(14'09" , 19'00" , 23'07" , 28'02" )- Width (base)
680 mm
(27 in)- Length (base)
Min.: 1,571 mm
(61.85 in)Max.: 3,530 mm
(138.98 in)- Total weight
470 kg, 500 kg, 530 kg, 560 kg
(1,036 lb, 1,102 lb, 1,168 lb, 1,235 lb)
Description
ROTATION ANGLE: 365°
WORK PRESSURE: 255 bar
RECOMMENDED OIL RATE: - 10 l/min
STANDARD CRANE WEIGHT (EXCEPT OIL):470 kg
STANDARD STABILIZERS OPENING: 3,5 m
RECOMMENDED TRUCK: 5 t
Standard crane equipment:
• Power connecting rods
• Flanged valves on the cylinders
• Double controls
• Steel oil tank 30 l
Optional:
• Rotate stabilizers manually
• Distributor with 2 extrafunctions for accessories
• Remote control
• Manual boom extension
• Winch
• Rotational grab
