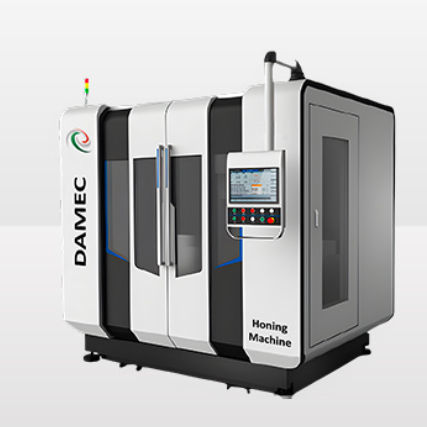

Hole polishing honing machine DCB 530

finishingvertical

The DCB 530 vertical honing machine was born from the demand of an increasingly demanding market in terms of precision, reliability, and ease of use, without compromising on an ever-more appealing design. DAMEC has successfully combined all these features, offering the market a cutting-edge product that meets the most challenging requirements. Fully CNC controlled. HONING RANGE: 20 - 300 mm SPINDLE SPEED: 50 - 400 rpm, 200 Nm POWER: 380 V - 50 HZ 3 PH - 25° EXPANSION SPEED: MAX. 100 nw SPINDLE MOTOR POWER: 5.5 kW - 38 Nm SIZE (LEN X WID X HGT): 2370 x 2050 x 2330 mm NET WEIGHT: 2800 kg COOLING TANK INCLUDED: Capacity 320 l MAXIMUM WEIGHT ON THE WORKTABLE: 800 kg MAXIMUM LENGTH OF BORE: 400 mm (STANDARD) X-AXIS (LENGTH - SPEED): 1050 mm - 0.05-5 m / min X-AXIS POWER: 1 kW - 4.78 Nm Z-AXIS (HEIGHT - SPEED): EXCEEDING 720 mm - 1-40 m / min Z-AXIS POWER: 4.08 kW - 26 Nm COLUMN SPEED: 1 to 200 SPM EXPANSION MOTOR: 0.4 kW - 1.27 Nm COOLING OIL PUMP: 0.25 kW - 100 l / min WORK BENCH: 1700 x 800 mm
