Vegetable peeler MASTER 2.800
fruitroller

vegetable peeler
vegetable peeler
Add to favorites
Compare this product


Characteristics

Food product
vegetable, fruit
Type
roller

Description

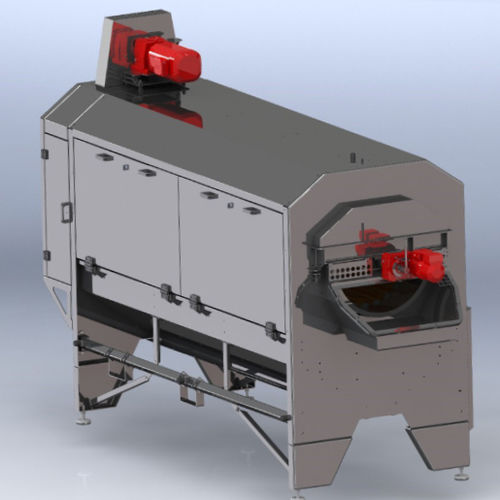

Continuous Rotary Peeler – Model MASTER 2.800– in stainless version The Master Peeler is manufactured of stainless steel with 24 rotary rollers built into a round rotary shaped frame with one central screw placed inside the rotary drum. The screw is for controlling the time inside the peeling drum. This takes place by using a frequency inverter connected to the gear drive of the screw. All rotary abrasive rollers can be exchanged very fast due to special bayonet connection system. Each roller is equipped with a V-belt drive wheel in order to adjust the speed for all the abrasive peeling rollers by means of a separate frequency inverter. All the abrasive rollers are placed into round rotary frame, thus framing/forming all rollers as a drum with sprocket operated chain drive operation, and with a large screw placed in the middle for control of peel-time. Dimensions of master peeler: Length: 4.100 mm Width: 1.100 mm Height: 2.400 mm (incl. gearmotor on top of machine) Infeed Height: 1400/1700 mm Discharge Height: 700/1700 mm The efficiency: The efficiency of the MASTER Abrasive Peeler is due to the fact that 3 (three) parts are rotating: •All 24 abrasive rollers are ROTATING •The total Drum of all rollers is ROTATING •The Screw in the middle of the Drum is Rotating And all 3 (three) parts are individually speed/rotation adjustable by means of frequency inverters. This unit triple rotating makes the peeling very efficient due to the fact that the product is constantly motion, thus tumbling down at another. Drum: The total Drum is covered be a very HEAVY DUTY Frame with covers along each side, which can be opened manually for inspection/cleaning.
