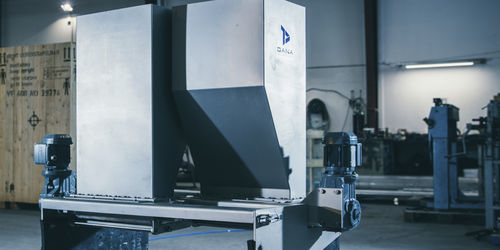

Food extruder EXT 88/490

For meat mix to steamcooking- and cooling tunnel Capacity: From 500 kg/h to 2.000 kg/h by Duplex operation. Model: EXT 88/490 equipped with product tank. Each Extruder/Product Distributor includes: •Overhead product tank of app. 30 Liter •A number of Sprocket Units with central motorized gear drive for feeding of product through the Matrice/Mould down to the cooking belting. •Easy removeable Matrice/Mould for different product string number and size/dimension. •Standard Matrice/Mould with a number of round/oval/square holes for product size of 5 mm up to 25 mm in diameter. •Level detection of product volume in tank - min/max. connected to electrical control equipment. •Adjustable product feeding by means of frequency inverter connection with possibility of product size/dimension variation during operation. •Extruder/Product distributor equipped with sliding/wheel for removal into cleaning position - outside cooking belt area. Due to this very easy disassembly and sanitation of machines. Automatic: Complete programable push-button keyboard to microprocessor with digital Display. Integrated mechanical as well as electrical SAFETY system of the Extruder / product Operation of the Extruder / Product Distributor by one Menu programable Microprocessor by attached Touch Screen including Memory for storing of Data and various previously programmed Menus. Finish: Extruder/Product Distributor is manufactured complete in stainless steel and/or food approved plastic-components
