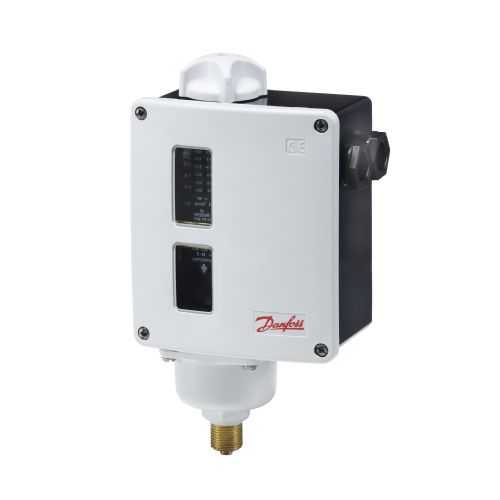

Diaphragm pressure switch RT112

differentialSPDTthreaded

RT pressure switches incorporate a pressure controlled, single-pole change over swich where the contact position depends on the pressure in the connection port and the set value. The RT series consists of pressure switches, di€erential pressure switches and pressure switches for neutral zone regulation, all for general use within the industrial and marine segments. The series also covers safety pressure switches dedicated for steam boiler plants. For installations in which operation is particularly critical from safety and economic points of view, the use of fail-safe pressure switches is recommended. The use of gold-plated contacts is also recommended in such installations, provided operation involves only a few switching cycles or signal currents and voltages. Features: • Simple design • High accuracy • High repeatability • Long operation life time • Available with all major marine approvals • Safety Integrity Level: SIL 2 according to IEC 61508 Product details Gross weight - 0.977 Kilogram Net weight - 0.867 Kilogram CE evaluated - Yes China RoHS compliance - Yes Contact function - SPDT Contact rating - AC15=3 A, 400 V AC1=10 A, 400 V AC3=4 A, 400 V DC13=12 W, 220 V LR=28 A, 400 V Electrical connection size - 2xPg 13.5 Electrical connection standard - DIN 40430 Electrical spec. standard - EN 60947-4/-5 EN 60947 electrical properties - Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A EN 60947 wiring properties - Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 EU RoHS compliance - Yes EU RoHS exemption clause - No In scope of WEEE - Yes Pressure connection size - 3/8
