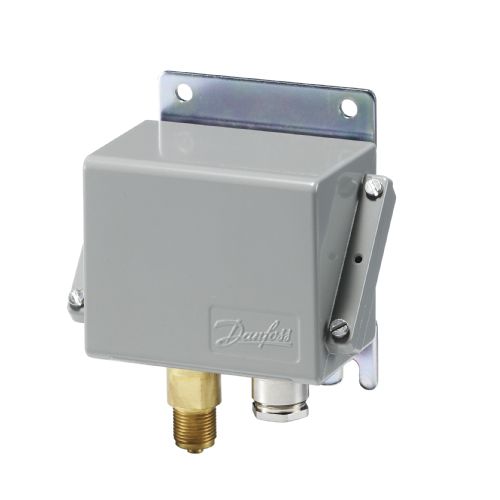

Diaphragm pressure switch KPS39

differentialSPDTDIN rail

The KPS Series consists of a series of pressure and temperature controlled switches. In this series, special attention has been given to meeting demands for a high level of enclosure, robust and compact construction, and resistance to shock and vibration. For KPS pressure switches the position of the contacts depends on the pressure in the inlet connection and the set scale value. For KPS thermostats the position of the contacts depends on the temperature of the sensor and the set scale value. The series covers most outdoor as well as indoor application requirements and is suitable for use in monitoring alarm and control systems in factories, diesel plants, compressors, power stations and on board ships. Features - • A high level ofenclosure - • Robust and compact construction • Adjustable differential - • Résistance to shock and vibration • Available with ail major marine approvals Product details Gross weight - 1.058 Kilogram Net weight - 0.973 Kilogram CE evaluated - Yes China RoHS compliance - Yes Contact rating - AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR max. 50 A for gold 1…30 mA, 5...30 V Contain batteries - No Electrical conn. comments - Metal cable gland Electrical conn. Male/Female - Female Electrical connection - Screwed cable entry Electrical connection size - Pg 13.5 Electrical connection standard - DIN 40430 EN 60947 electrical properties - Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A EN 60947 wiring properties - Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
