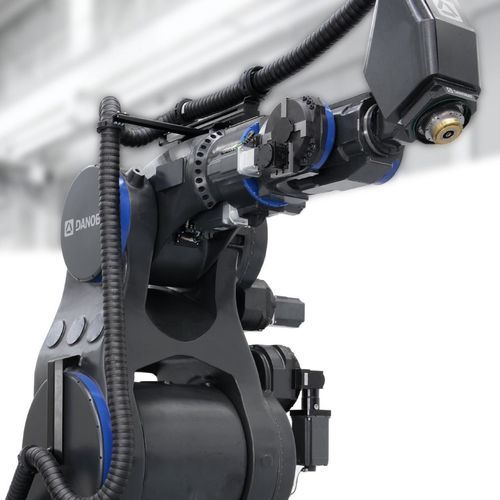

Articulated robot dBOT

6-axisfor assemblymachining

Overview
The dBOT is a CNC-class precision industrial robot designed for machining, assembly and additive tasks. It provides machine-tool level stiffness and trajectory control with lifetime zero backlash and secondary encoders on all axes.

Positioning & concept
Combining machine-tool structural principles and a 6-axis robot kinematic, dBOT delivers repeatable pose and path accuracy suitable for demanding manufacturing processes. The platform supports full trajectory control and integration with industrial controllers.

Tasks & materials

• Precision machining (milling, grinding, finishing) on metallic and composite parts
• High-accuracy assembly and joining operations
• 3D printing and additive deposition for metals and composites
• Flexible use in multi-task cells: machining, additive, inspection, assembly

Key technology & components

• Secondary (output-side) ultra-resolution encoders on all 6 axes (optical) for enhanced trajectory accuracy
• Lifetime zero-backlash via pre-tensioned dual-drive configuration and beltless drive design
• In-house gear stages to raise natural frequencies and improve dynamic rigidity
• FEA-optimised cast-iron structure to minimise deflection under load
• dTRACK modular linear track: expandable reach, up to 5× stiffer than standard tracks, lifetime zero backlash

dBOT capabilities

• Full trajectory (pose and path) control with up to 3× improved accuracy versus standard robotic solutions
• Significant vibration reduction (up to 10× lower) and reduced cycle times in machining tasks
• Multiple configurations and models to match payload and reach requirements

Selected technical data (range summary)
Payload (kg): dBOT S1: 80–125 | dBOT S2: 200–220 | dBOT S7: 400–520–700
Reach (mm): dBOT S1: 2600–2185 | dBOT S2: 2900–2600 | dBOT S7: 3600–3315–3050
Number of axes: 6 (all models)
Secondary encoder: Optical encoders on all 6 axes
Control system: SIEMENS SINUMERIK ONE
IP protection: IP65 | IP67 (configurable)

Applications & benefits
dBOT brings machine-tool class stiffness and accuracy to robotic cells, improving process repeatability, reducing vibration during machining and enabling shorter cycle times. Typical sectors: aerospace, automotive, energy, bearings, railway and other high-precision industries.

Technical specifications

• Model name: dBOT
• Brand: Danobat
• Configuration: 6-axis robot
• Payload ranges: S1 80–125 kg; S2 200–220 kg; S7 400–520–700 kg
• Reach examples: S1 2600–2185 mm; S2 2900–2600 mm; S7 3600–3315–3050 mm
• Secondary encoders: Optical on all 6 axes (ultra-resolution)
• Control: SIEMENS SINUMERIK ONE
• IP rating: IP65 standard, IP67 optional
• Zero backlash: Pre-tensioned dual-drive, beltless design
• Structure: FEA-optimised cast iron
• Drive & gears: In-house gear stages for higher natural frequencies
• dTRACK (optional): Modular linear track, expandable reach, up to 5× stiffer than standard tracks
• Primary tasks: machining, assembly, 3D printing (metallic and composite materials)
