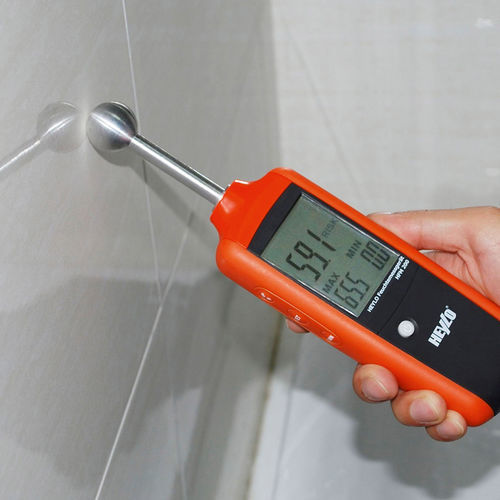

Building materials moisture meter HFM 200

for woodhigh-frequencycapacitive

Product overview
The Heylo HFM 200 is a handheld moisture meter using capacitive high-frequency (HF) technology for fast, non-destructive material moisture checks. It measures material moisture 0–100 with an effective measuring depth of 20–40 mm. Optical and acoustic alarms notify the operator when two configurable limit values are exceeded. Supplied: device, 3×AA batteries, carry bag.

Key features

• Capacitive HF sensor with ball probe for building moisture measurement
• LCD triple display with backlight for clear readout
• Automatic calibration in dry air at switch-on
• Optical and acoustic alarms with two adjustable thresholds
• Low-battery indicator and automatic power-off
• Portable handheld design for quick on-site checks

Applications and delivery contents

• Suitable for tiles, wood and organic building materials
• Typical uses: construction inspection, restoration, maintenance and quality control
• Delivery contents: device, 3×AA batteries, carry bag

Technical specifications

• Measurement principle: capacitive high-frequency (HF) sensor, material moisture 0–100
• Measuring depth: 20–40 mm
• Display: LCD triple display with backlight
• Alarms: optical and acoustic with two adjustable limit values
• Calibration: automatic in dry air at switch-on
• Power supply: 3×AA batteries (included)
• Auto shutdown and low-battery indicator
• Dimensions (L×W×H): 28×60×235 mm
• Weight: 0.218 kg
