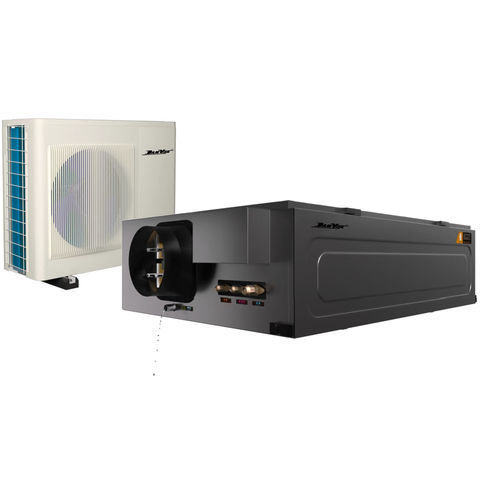

Duct air conditioner DD-136 FX
wall-mountedceiling-mountedhorizontal

Duct air conditioner - DD-136 FX - DanVex - wall-mounted / ceiling-mounted / horizontal
Duct air conditioner - DD-136 FX - DanVex - wall-mounted / ceiling-mounted / horizontal
Duct air conditioner - DD-136 FX - DanVex - wall-mounted / ceiling-mounted / horizontal - image - 2
Duct air conditioner - DD-136 FX - DanVex - wall-mounted / ceiling-mounted / horizontal - image - 3
Add to favorites
Compare this product

Characteristics

Configuration
wall-mounted, duct, horizontal, ceiling-mounted
Type
split
Applications
industrial, commercial, office, residential, for computer rooms, for the food industry
Other characteristics
reversible, VRV
Cooling power

5,400 W
(18,425.56 BTU/h)

Heating power

5,900 W
(20,131.63 BTU/h)

Height

320 mm
(13 in)

Width

1,260 mm
(50 in)

Depth

799 mm
(31 in)

Air flow

350 m³/h
(12,360.13 ft³/h)

Noise level

40 dB

Description

The DanVex professional ducted climate system is designed to provide a comfortable climate in both residential and
commercial spaces.
It is a versatile unit that combines the functions of an air dehumidifier, an air conditioner–heat pump with adjustable
temperatures from +5 °C to +35 °C, and a ventilation system with humidification, air purification and filtration. It removes
dust and odors, prevents mold growth, and ensures a healthy indoor environment without the need for separate systems.
The units are equipped with temperature, humidity, PM2,5 and CO₂ sensors.
The system automatically adjusts its operating mode, maintaining optimal indoor conditions without the need for
user intervention.

DanVex DD-136 FX is a climate split system that provides:

- Comfortable temperature all year round
- Optimal humidity 24/7
- Efficient ventilation and air purification
- A healthy indoor environment thanks to filtration (G4/F7/H13 HEPA), PM2.5 sensor, UV lamp, and anion generator

Full Inverter Technology
Cooling Capacity - 5 400 W
Heating Capacity - 5 900 W
Dehumidification capacity (30°C80%) - 125 L/24 hours
Humidification capacity - 2kg/h
Temperature maintenance +5°C to +35°C
Outdoor temperature range -25°C to +43°C
