- Male electrical terminal
- Danyang Teruilai Electronics Co., Ltd.

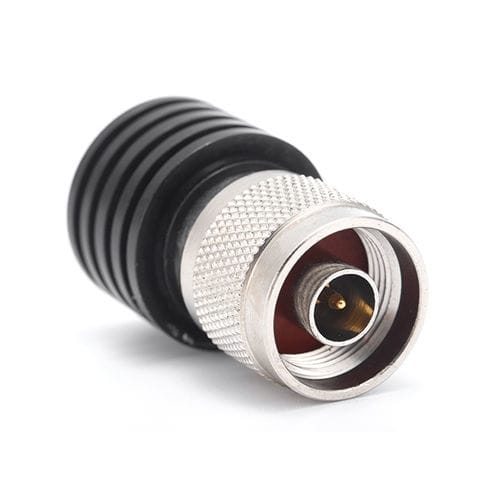

Threaded termination N-50JR-5Wmalepinbrass
Add to favorites
Compare this product
Characteristics
- Connection type
- threaded, male, pin
- Material
- stainless steel, brass, bronze, gold
- Other characteristics
- RF
Description
The N coaxial terminations can be designed based on customer 's request ，with impendence of 50Ω or 75 Ω.They can be matached to any transmission line . We have two kinds of material , brass with gold plated or stainless steel.
N male 5 Watts RF Termination
RoHS Certificate: Compliant
Frequency range - DC-6GHZ
Insulation Resistance - ≧1000MΩ
VSWR - ≦1.20
Power - 5W
Durability (matings) - ≧500
Connector parts - Material - Plating
Body - Brass - Nickel-plated
Pin contacts - Bronze - gold-plated
Insulators - Teflon
