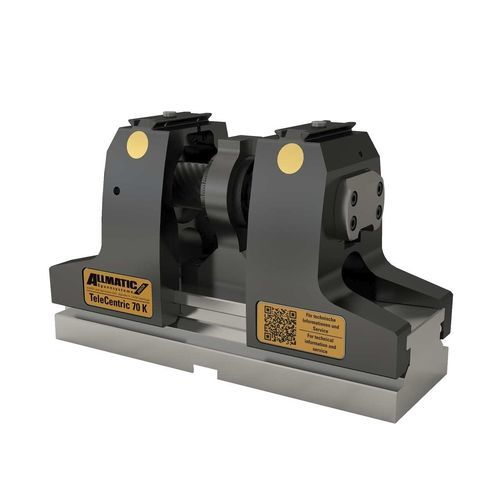

Machine vise Tele-Centric

high-pressure

One of the top moving overall vises, featuring an enclosed, high-pressure spindle, overall length remains constant and zero-point mounting compatible. Telecentric Maximum accessibility Safe and reliable clamping High precision Low susceptibility to vibrations Short changeover times Quick change jaws for zero point clamping systems Easy operability Simple jaw change Light weight For small and medium-sized machine tables Overview max. torque in Nm: 45 max. clamping force in kN: 30 Workpiece: Unmachined parts, Machined parts min. Clamping range/mm: 0 Version: Mechanical TeleCentric Features Telescopic spindle, interference contour remains unchanged Central, simple programming without zero point offset The allowance of the material is symmetrically distributed Accessibility of the workpiece depends on the chuck capacity Symmetrical construction shape = workpiece remains central and parallel Support height of the workpiece 192 mm Quick change jaw system, tool-free jaw change due to quick-action closure within 10 seconds per jaw pair Reversible jaws: for min. / max. chuck capacities with one pair of jaws Constant clamping force via low-maintenance telescopic spindle Provided as standard with locating holes for a zero point clamping system, inside micrometer 200 Attachment to machine table with mounting raster 50/63mm for fitting bolt/cylinder screws or clamping shoes. Integrated scaling for fine adjustment of the central position Low weight (without jaws): K =17.5 kg / M=19.5 kg Clamping force 30 kN at 45 Nm linear Operation with torque wrench
