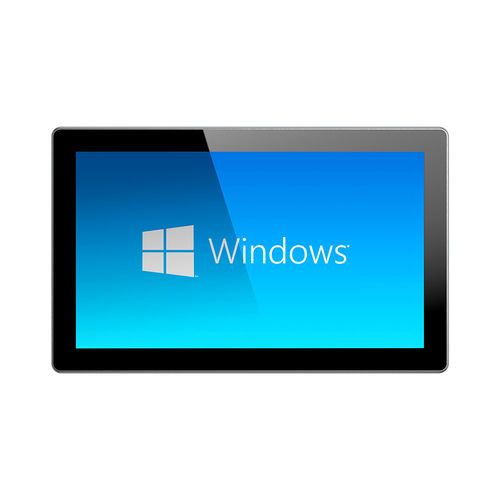

LCD panel PC SPC-9185

PCAP capacitive touch screen5-wire resistive touch screen18.5"

The 18.5-inch SPC-9185 stainless steel panel PC, powered by 12th Gen Intel® Core™ i5-1235U or Celeron® J6412 processors, is specifically designed for the food processing and pharmaceutical industries. Its housing is constructed from SUS 304/316 stainless steel with a seamless design, making it easy to clean and highly durable. The narrow bezel provides a modern, sleek appearance. The SPC-9185 is equipped with M12 I/O ports, meeting IP66 dust and waterproof standards, making it ideal for dusty, humid, or harsh environments. Specifications Display Control Interface - USB Surface Hardness - ≥7H for capacitive; ≥3H for resistive Luminance - 300 nits Contrast Ratio - 1000:1 View Angles - 89 (left), 89 (right), 89 (up), 89 (down) LED Lifetime - 30,000 hrs Color - 16.7 M System Storage - 1x 2.5″ SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD - 1x 2.5″ SATA HDD/SSD (optional) 1xM.2 for 2280 NVME SSD I/O Ports Serial - 2x COM (Supports 2x RS232 or 1x RS232 and 1x RS485) Ethernet - 2x GbE LAN Power Button - Yes DC Input - 9-36VDC Power Consumption - 24 W - 29 W Power Mode - ATX Mechanical Dimensions (W x D x H) - 472.3 x 293 x 55 mm (18.6 x 11.5 x 2.2 inches) Weight (N.W.) - 7.3 kg (16.1 lbs) Environment Operating Temperature - -10 to 50°C(14 to 122°F) Storage Temperature - -40 to 80°C (-40 to 176°F) Relative Humidity - 5% to 90%, non-condensing
