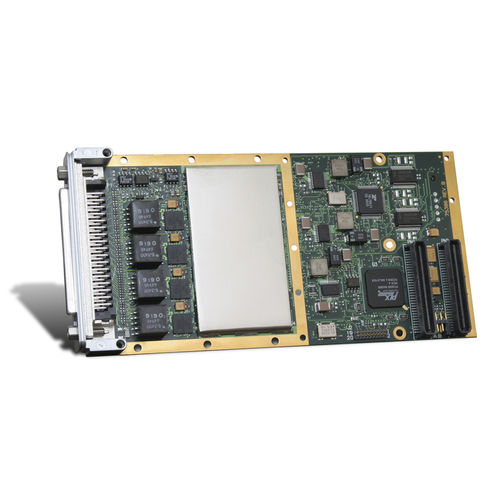

PMC interface card BU-65590F, BU-65590M

RS-232RS-422avionics

The BU-65590F/M is a multi-protocol PMC card providing new levels of performance and flexibility for systems interfacing to a MIL-STD-1553 or ARINC 429 data bus. There are up to four dual redundant MIL-STD-1553 channels operating in BC, RT, MT, or RT/MT modes. Sixteen ARINC 429 receive channels and six ARINC 429 transmit channels operate in high/low speed with automatic slew rate adjustment. The card also contains up to six digital discrete I/Os, an IRIG-B time synchronization input, two RS-422/485 Serial I/O channels, and up to two RS-232 Serial I/O Channels. The combination of multiple I/O on one card saves valuable PMC sites on host computers.
